SKU: 57222

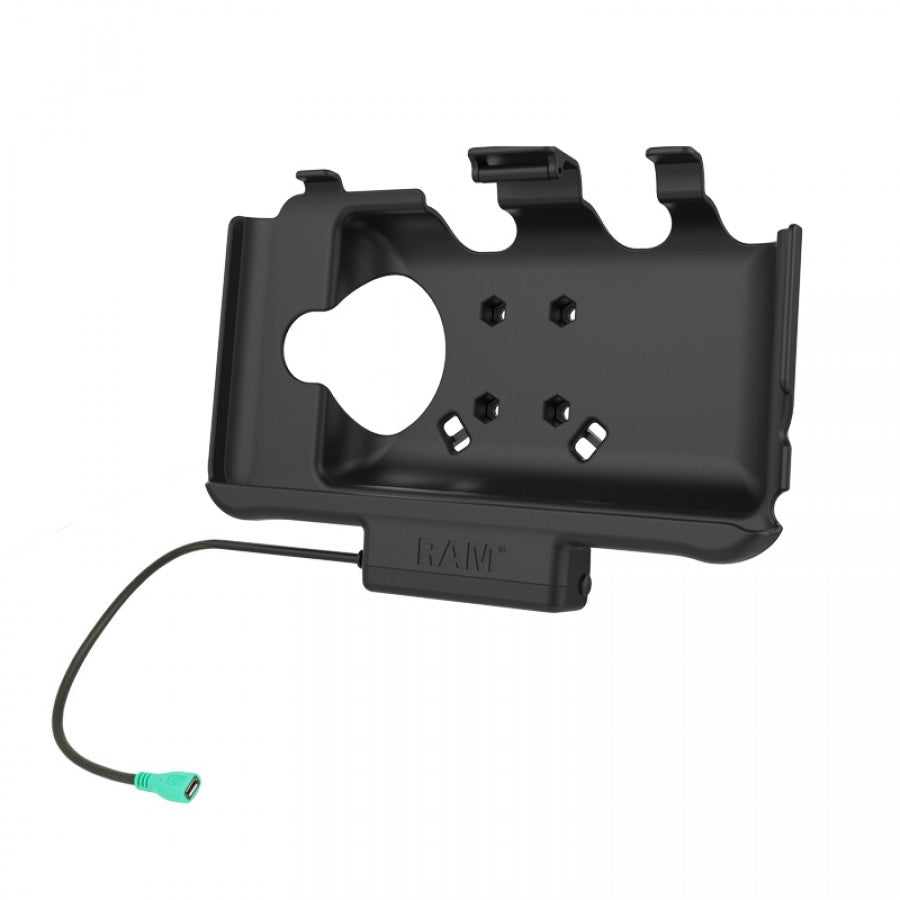

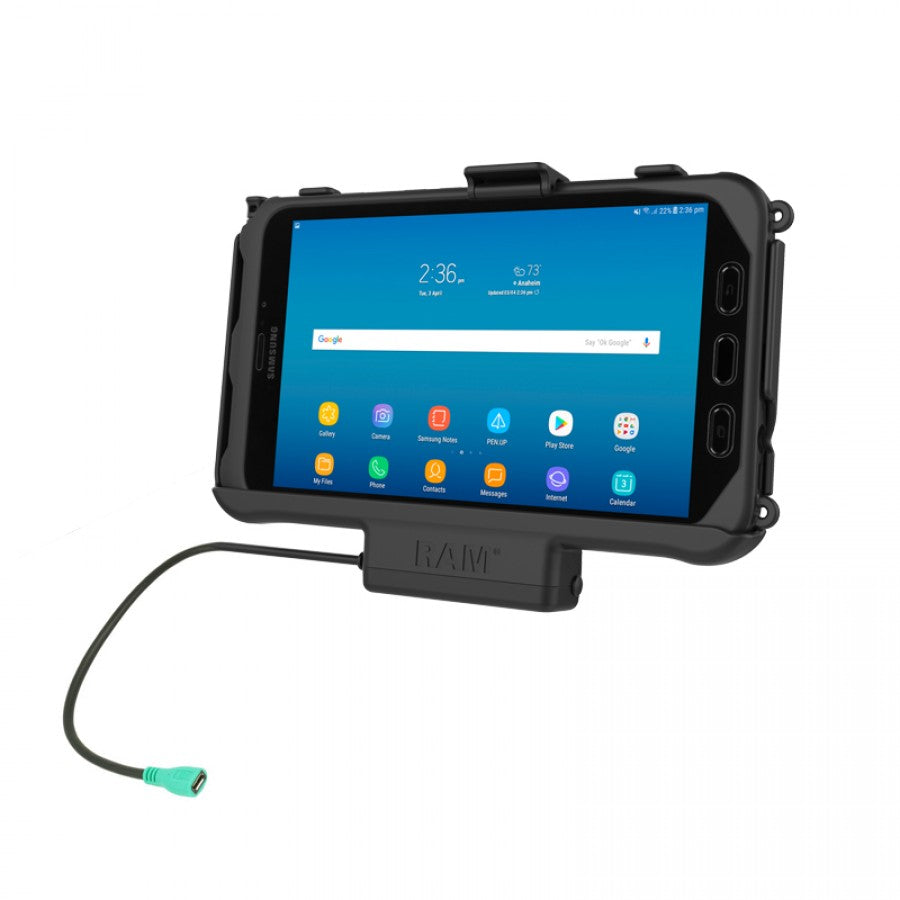

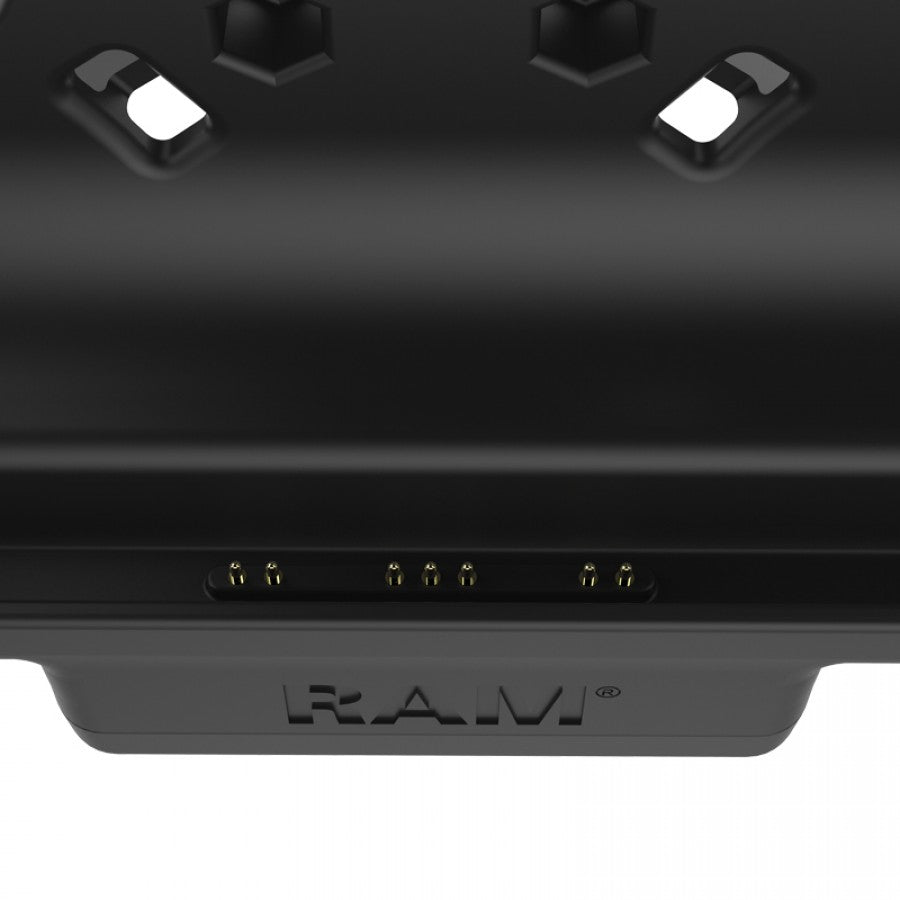

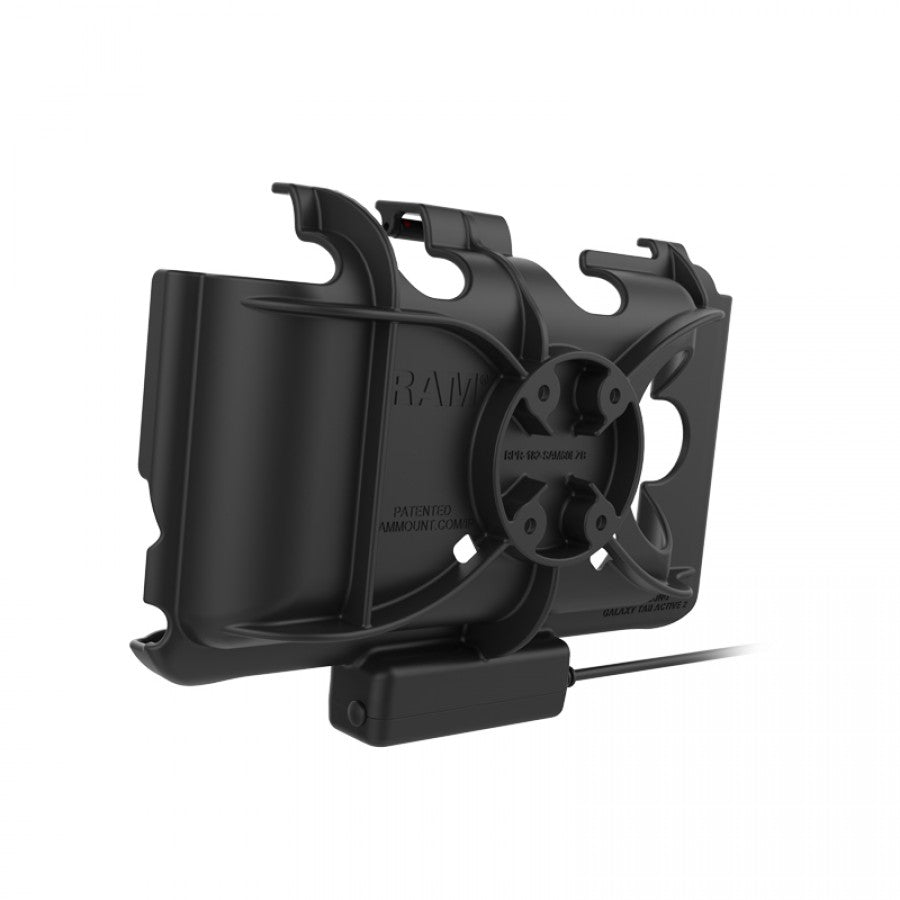

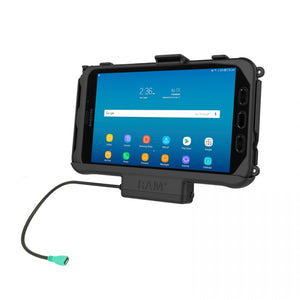

RAM-HOL-SAM60CP, RAM EZ-Roll'r Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and Tab Active2 through integrated pogo pin connector and USB C cable
Compatible with the Samsung OEM skin as well as the RAM Skin; built-in cavity in the back allows for GDS Hand-Stand compatibility
Access to speakers, mics, headphone jack, and NFC reader remain while device is docked; allows access to the GDS shoulder strap loops on RAM Skin
Backed by a 3-year warranty
OVERVIEW
This powered cradle for the Samsung Galaxy Tab Active5, Tab Active3 and Tab Active2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. This cradle is also compatible with the RAM Skin or factory device skin, as well as GDS Hand-Stand and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS USB 2.0 cable, cable clamp, and zip ties. Look to the RAM-GDS-CHARGE-V7B hardwire charger or the RAM-GDS-CHARGE-USB2QCCIG cigarette vehicle charger for supplying power.

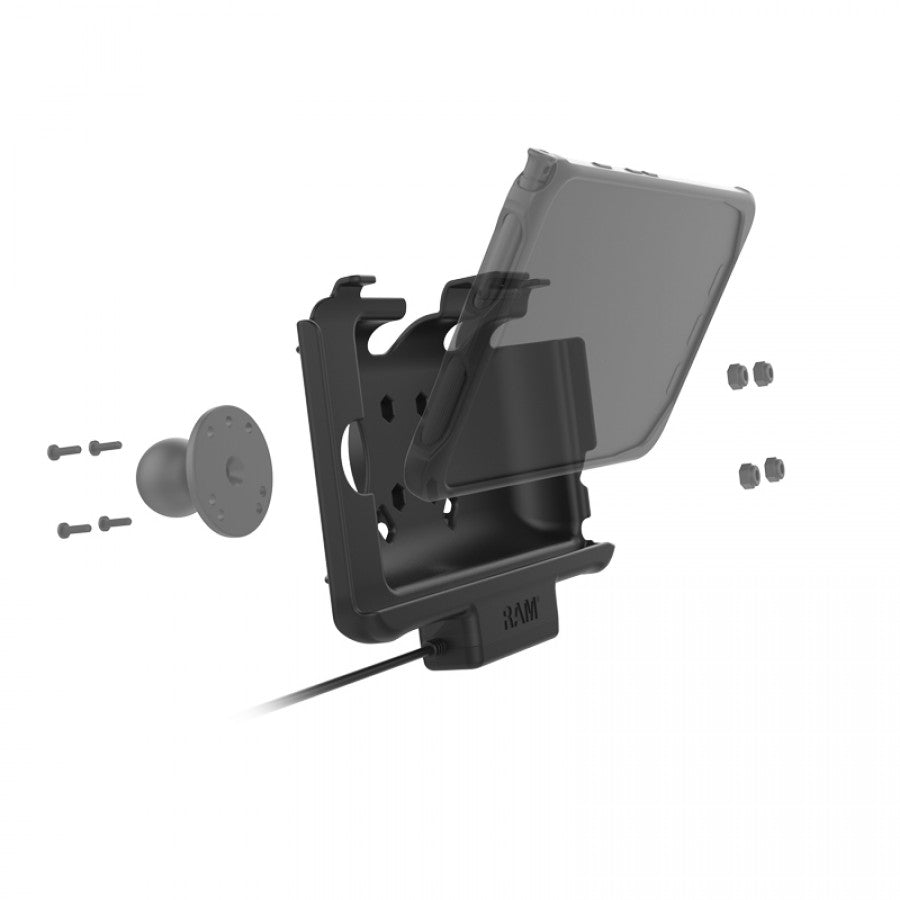

HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(5) Small Cable Ties
PRODUCT DIMENSIONS
Width: 9.25"
Height: 6.375"
Depth: 2"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
MATERIALS
High strength composite
WARRANTY STATUS
3 year warranty
ADDITIONAL INFORMATION
This product will not support IntelliSkin.
Mount using a round ball base (RAM-202 recommended)
Device speakers and mics exposed
Device headphone jack exposed
Zip tie locations for cable retention
NFC reader accessible while in dock
Includes mUSB male to Type-A male cable and cable clamp with zip ties
mUSB female pigtail for power
