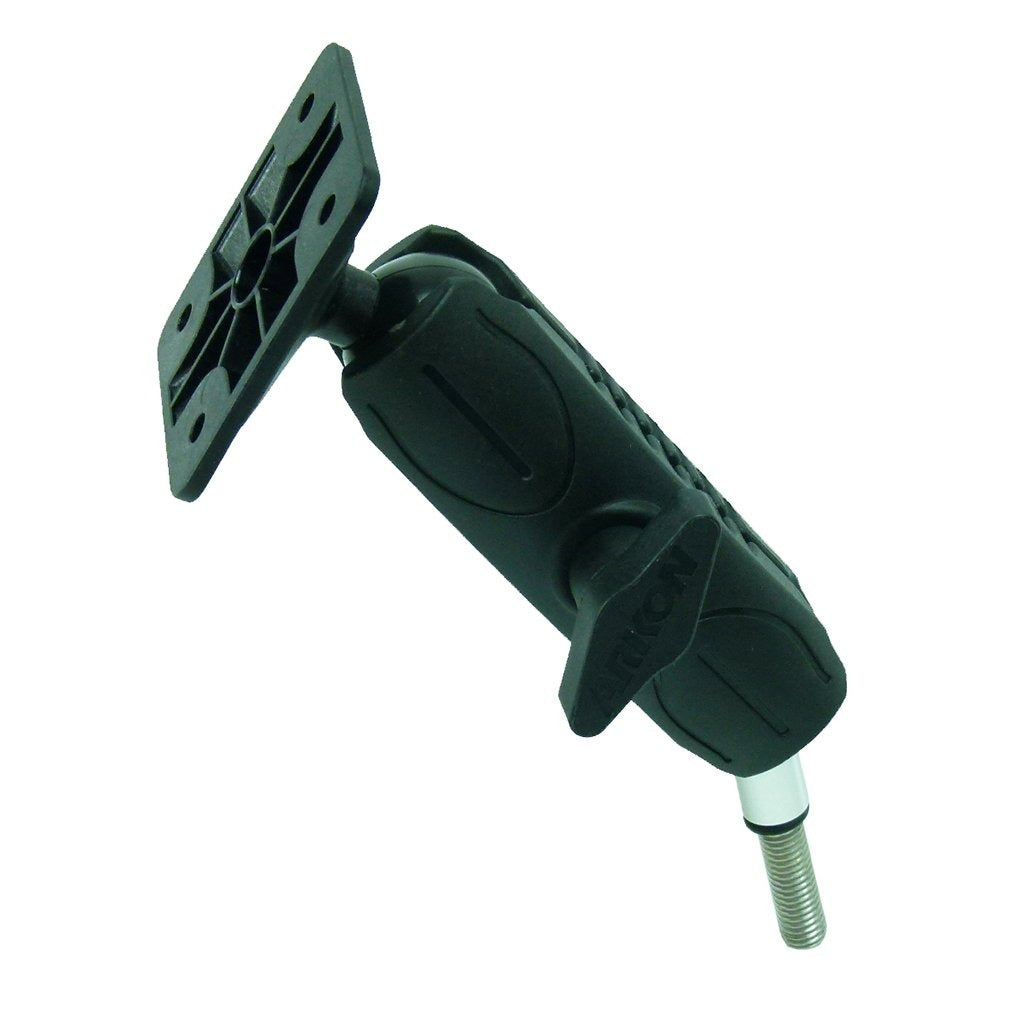

BuyBits Original Extended M8 Motorcycle mount with AMPS Adapter.
Standard AMPS 4 hole layout adapter fits the TomTom RIDER 500 / 550 GPS systems.
AMPS fits the units dock - dock not included.
The M8 handlebar clamp system is supplied with THREE of the most popular M8 bolts and is suitable for any Japanese or European motorcycle models using metric bolts.

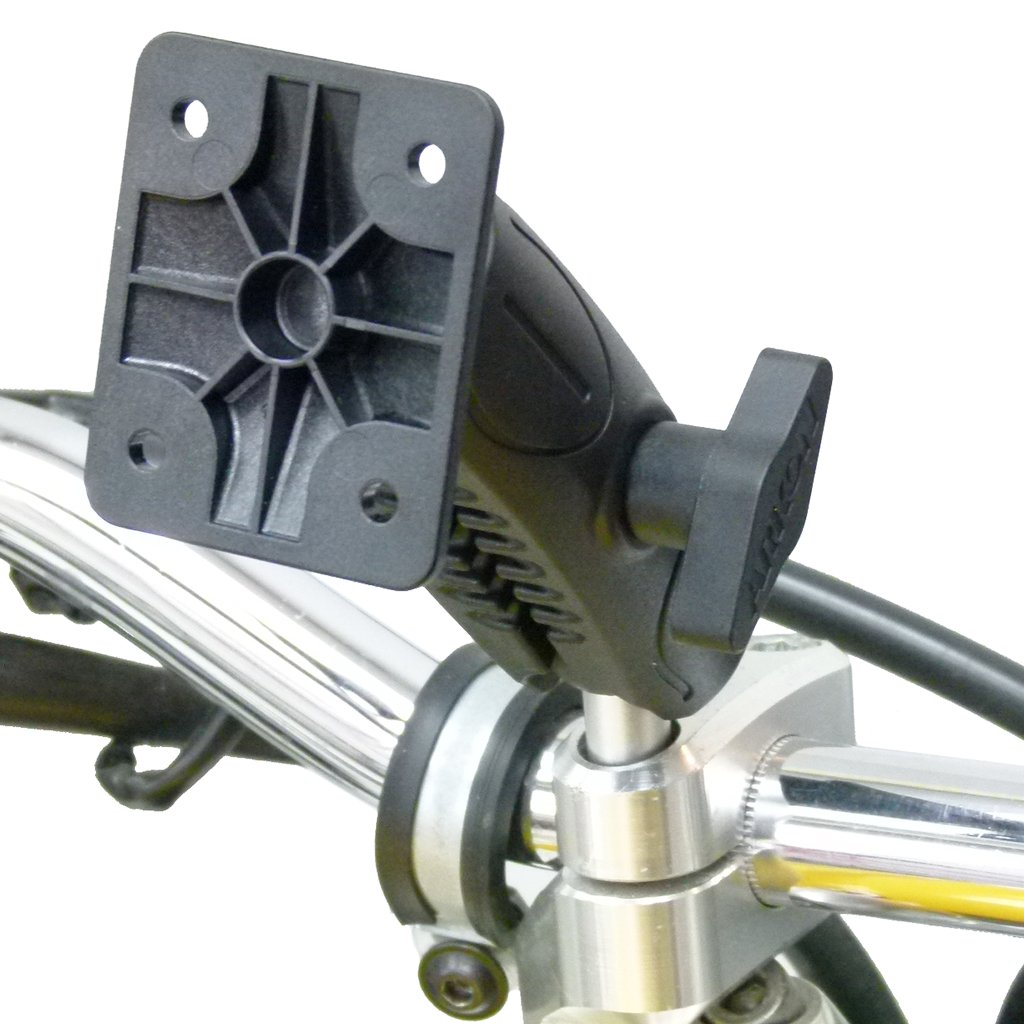

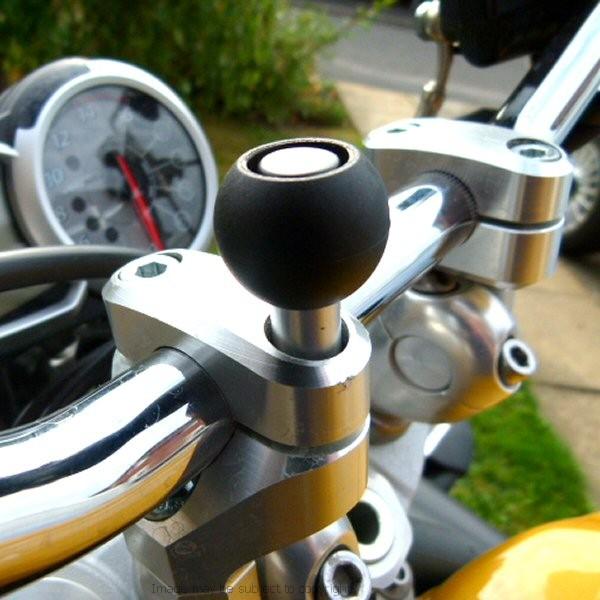

This mounting system replaces one of the M8 bolts on your handlebar top clamp bracket .
3 size of M8 bolts supplied
1 x 55mm M8 screw bolt
1 x 60mm M8 screw bolt
1 x 65mm M8 screw bolt

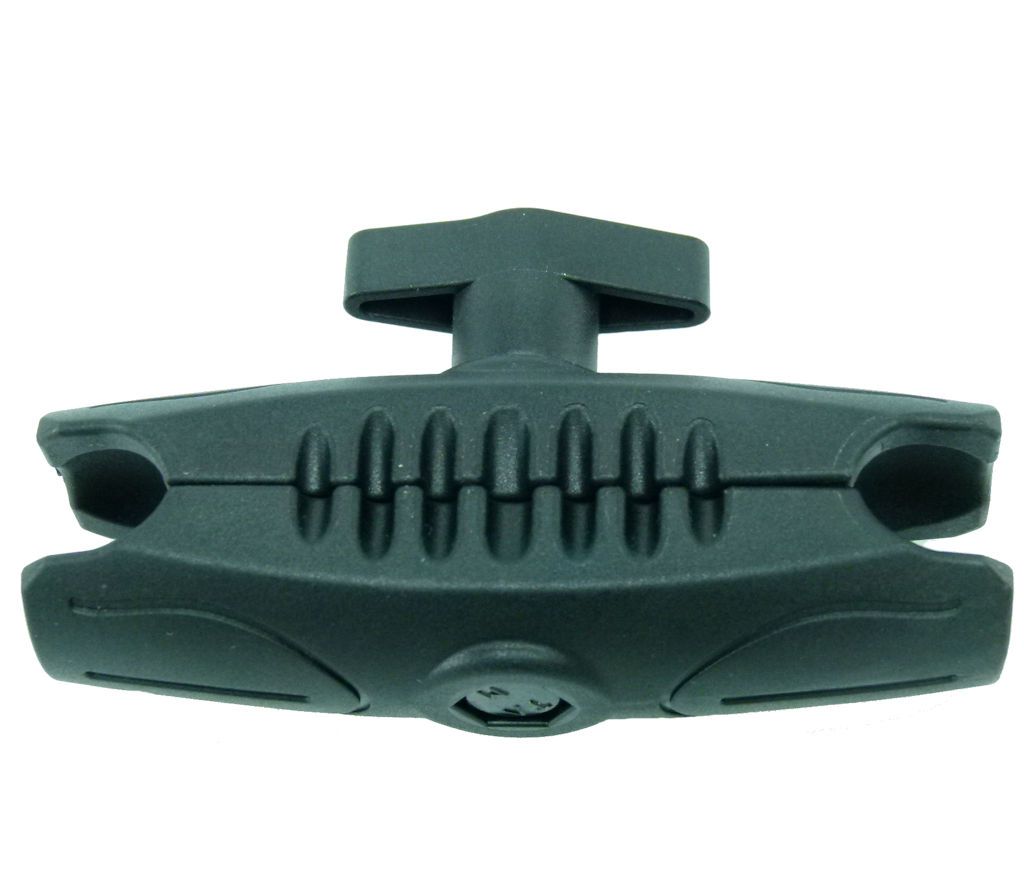

BuyBits Original extension arm:
3" length (7.62cm) between Centre.
1" double socket fits all 1" ball mount bases including RAM Motorcycle Mounts and Ultimate Addons.
Made from heavy duty composite.
Light-weight & durable.

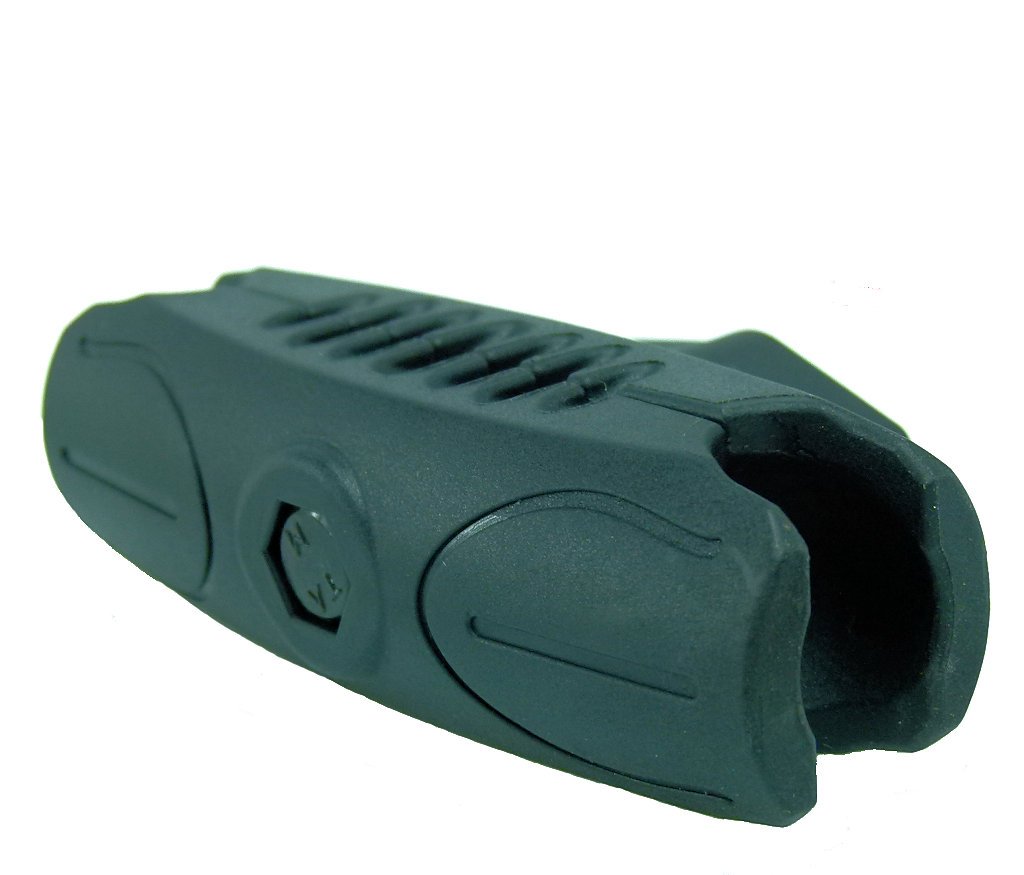

A tightening screw on the side of the arm enables the sockets to clamp firmly to a 1" diameter ball. When loosening the side screw, a single spring inside the arm opens the sockets allowing you to pivot the ball and socket connection or completely disconnect the ball from the socket.

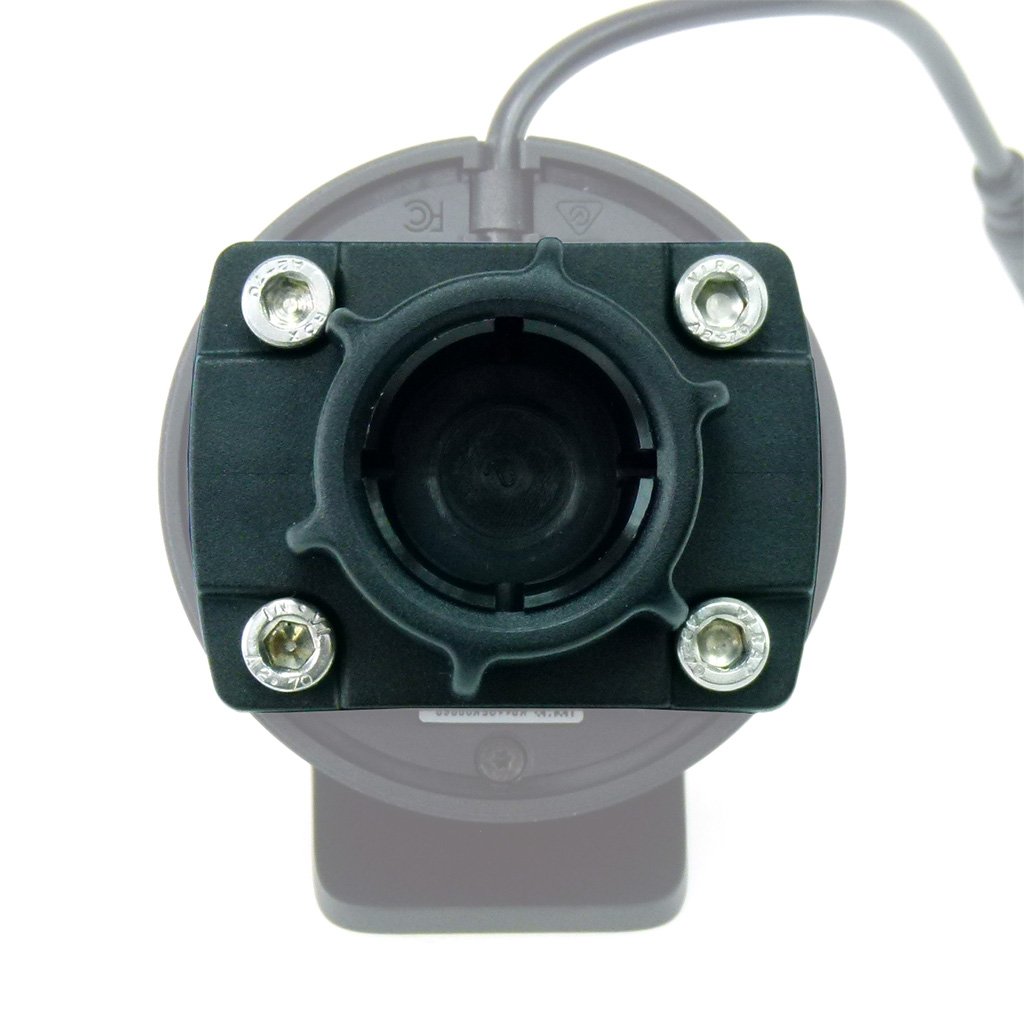

BuyBits Original 1" Ball AMPS 4 Hole Adaptor.
The 4-Hole AMPS pattern consists of four holes located in a rectangular pattern spaced at 1.188" by 1.813”.
Industry-standard 4-Hole AMPS pattern is used with in mounting options for many cameras, GPS devices, satellite radios or audio/video receivers.
Although we supply three sizes of M8 bolts in this kit you may find the lengths are not suitable for your needs. On this rare occasion you can purchase longer bolts from a reputable merchant. This is also the case if you wish to use this mount but require UNF.

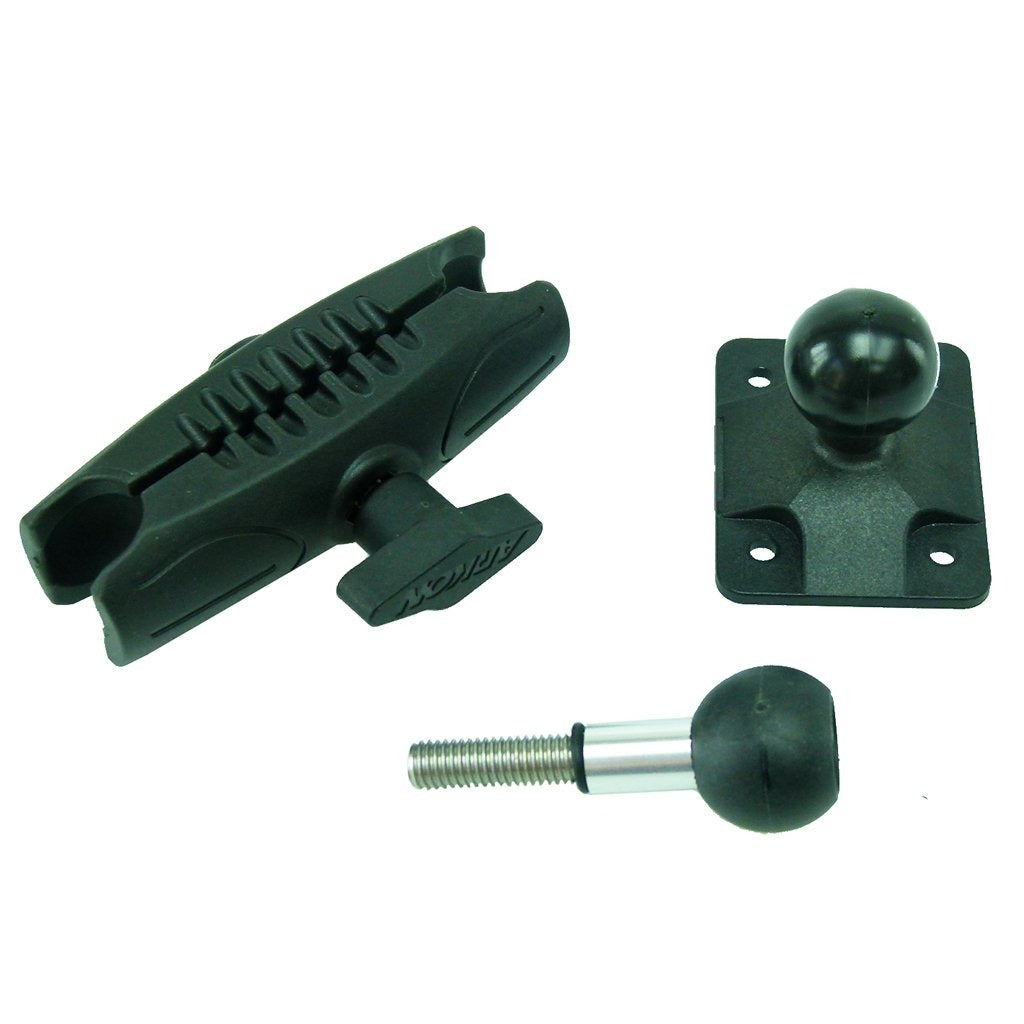

1x Buybits Original 1" Ball Amps 4 Hole Adaptor
1x Buybits Original Extension Arm
1 x M8 Top Clamp Handlebar Mount
