Hardwire Powered 17.5mm-20.5mm Motorcycle Fork Stem Yoke Mount for TomTom START 60 (sku 17373)

SKU: 17373

Hardwire Powered 17.5mm-20.5mm Motorcycle Fork Stem Yoke Mount for TomTom START 60 (sku 16373)

SKU: 17373

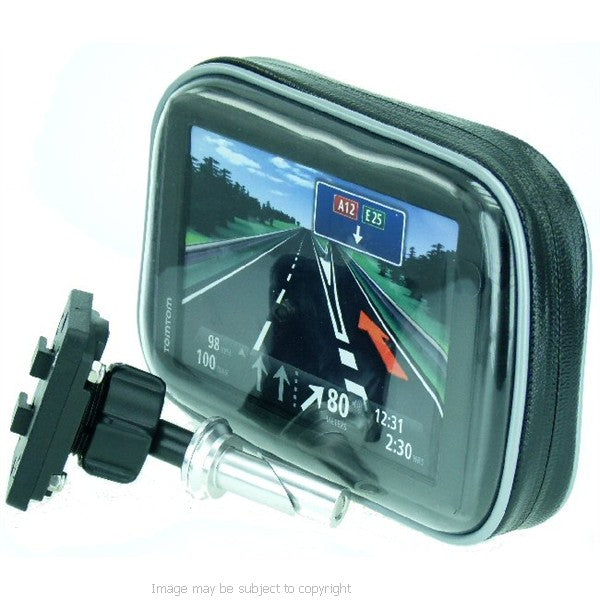

Powered motorcycle fork stem yoke mount for the TomTom START 60 GPS satnav series.
Includes a direct to battery hardwire charging cable with moulded TomTom START 60 connector.

Weather resistant protective case with central fork stem mount for holes
17.5mm-20.5mm (0.68 "- 0.81").

This central fork stem yoke mount has been developed for use on motorcycles where a handlebar mounting option is not possible or desirable.
Designed to fit sports, superbike, endurance and touring motorbikes using the cylindrical bore wall (steering head tube) of the fork stems.

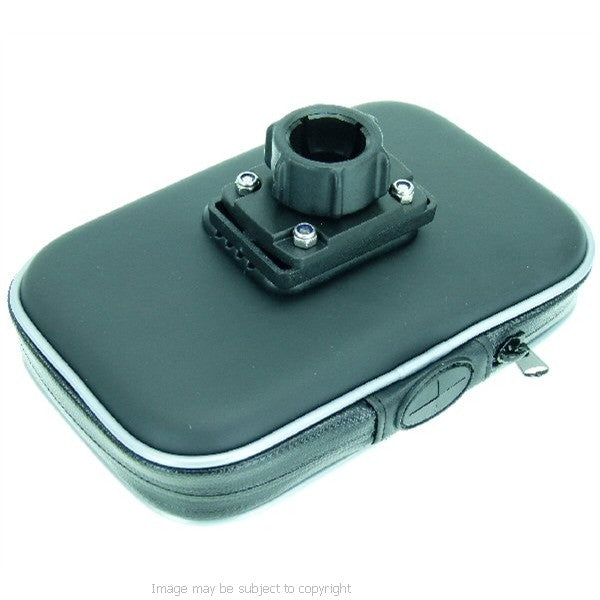

Case Features:

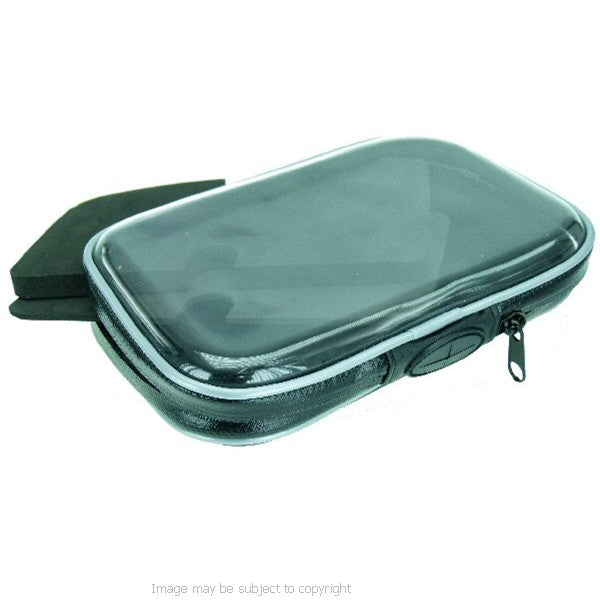

BuyBits new improved fit GPS case - fits satnav devices with a maximum size of 165mm x 105mm x 24mm.
New 'EDGE to EDGE' touch sensitive lens - view and control your satnav while it remains protected within the case.
Offers protection from damp weather & light rain showers.
Covered zip.
Charging cable access.
Supplied with additional support pads.
Case un-clips easily for security.

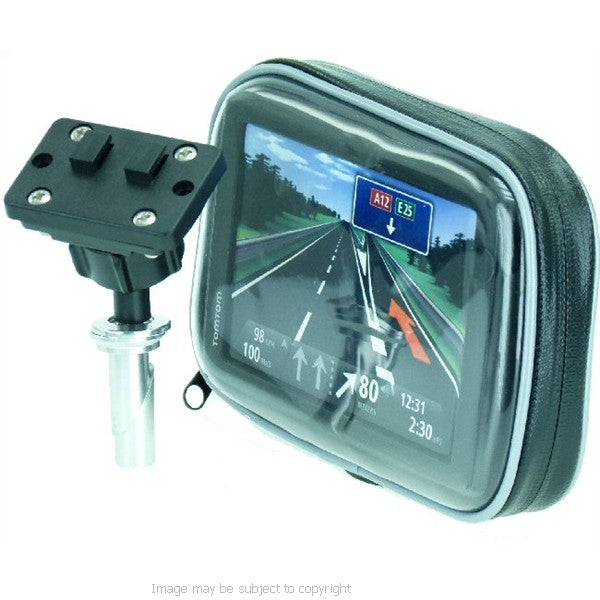

Mount Features:
Motorcycle Fork Stem Yoke Mount Fits Stems: 17.5mm-20.5mm (0.68 "- 0.81").
The 1" Ball fixing.
Light weight - made from Aluminium.
Attaches easily to the steering head tube of fork stem.
Easy to fit and completely removable.

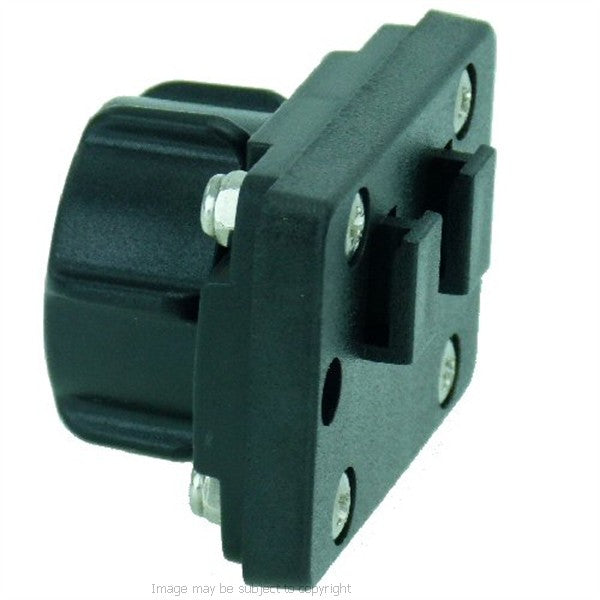

Included a 2 prong adaptor joins mount to case.

IMPORTANT: First check that your stem cover can be removed leaving a central hole for the mount to fix in.

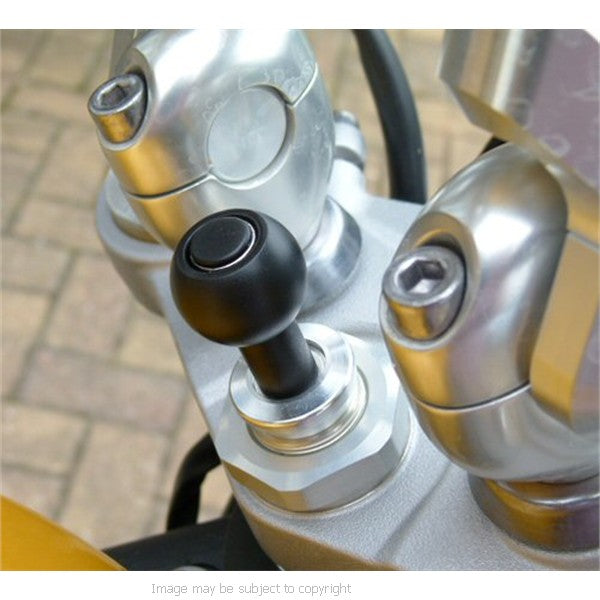

Simply drop the Fork Stem Motorcycle attachment into the hole of the stem and tighten. The split shaft will expand to fit the inside wall of the fork stem.
Use an Allen Key to tighten to create a tight fit.
PLEASE NOTE:Measure your hole: This option is designed to fit stems that measure from 17.5mm-20.5mm (0.68 "- 0.81").

Video example of this type of mounting option only.

Ultimate Addons Central Fork Stem Yoke Mount - YouTube

Video will open in a new window

When fitting the case to the mount you must ensure you engage the 2 prong attachment system, firmly pushing together until it clicks. Some force will be required.

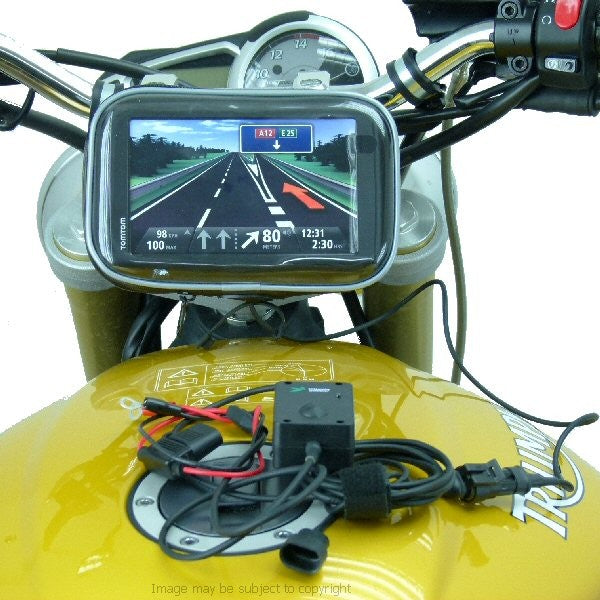

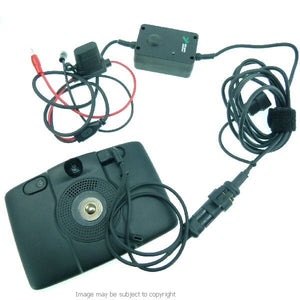

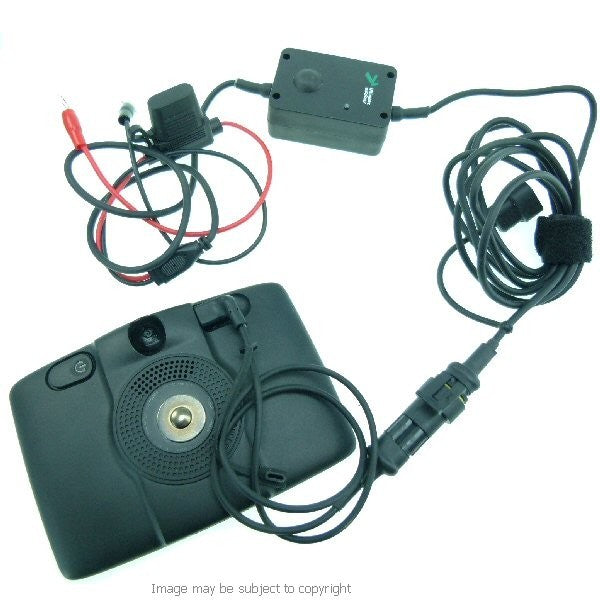

This mount comes complete with adirect to battery hardwire charging cable with a specially designedmicro USB plug which fits directly into the TomTom START 60 charging port.

FUSED & WATERPROOF hardwire cable - designed for motorcycles.
Incorporates an on/off power switch on the voltage regulator.
Unlike many hardwire cables which drain your battery's power while your bike is stored, our cable allows you to switch the current off when you want.
Features:
Designed for motorcycles
Molded micro USB connector
2 amp Blade Fuse
On/Off switch
Weather cap.
Input Voltage: DC 12-24V
Maximum Charging Current: 1A
Output Voltage: DC 5V
Reverse Voltage Protection
Short-Circuit Protection
Overload Protection
Water Resistance
Built in Surge Protector
Total Cable length - Approx 3 metres
Device plug to Connector = approx 50cm
Connector to Switch box = approx 1m
Switch box to Battery Connectors = approx 1.5m
On/Off Switch Box size - 6cm x 2.4cm x 3.9cm
CE Approved
12 Month Warranty

The beauty of this cable is that once you have run the wire from your battery the weatherproof connector allows alternative power connectors to be used allowing you to power other devices you might own.
Connectors currently available include: Mini USB angled, Mini USB straight, Micro USB, iPhone, Galaxy S3 / S3 & standard USB - all sold separately.

Ultimate Addons Hardwire Cable - YouTube

Video will open in a new window

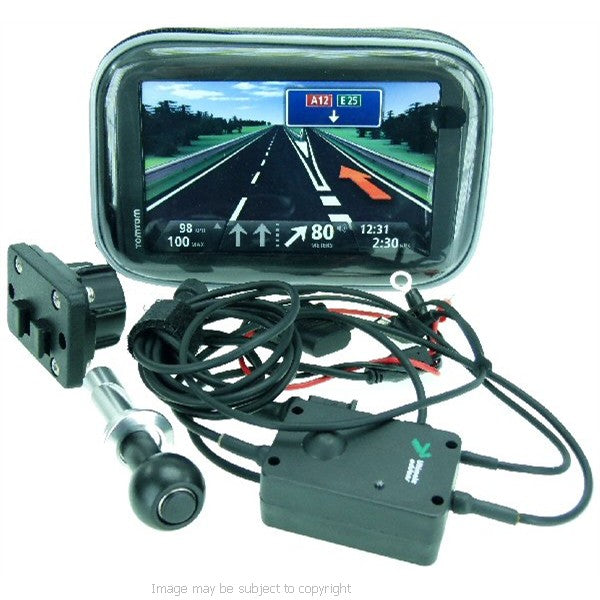

What do I get?
1 x Ultimate Addons Direct to Battery Hardwire charger
1 x Molded micro usb power connector
1 x Weatherproof GPS case
1 x Fork stem mount
