SKU: 57223

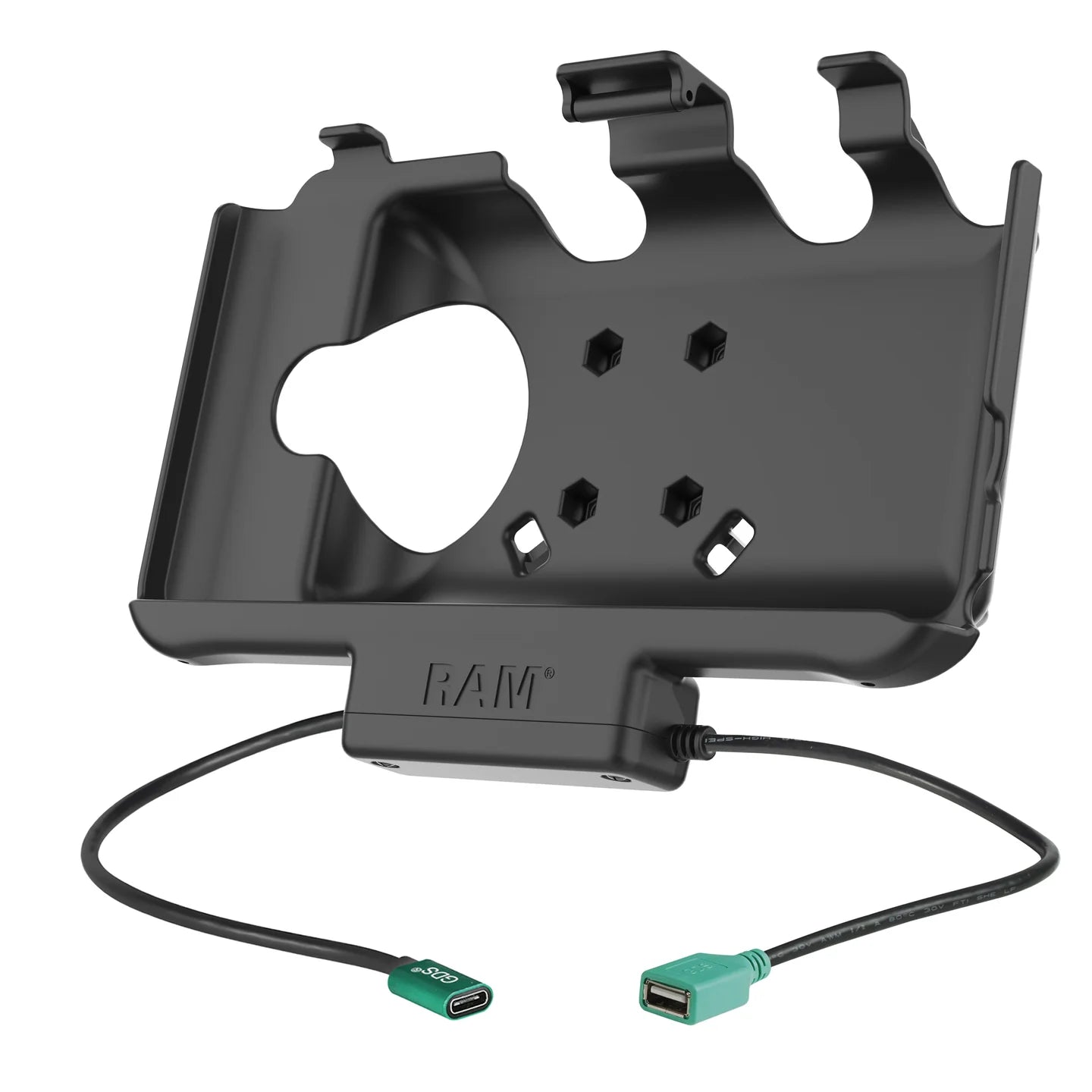

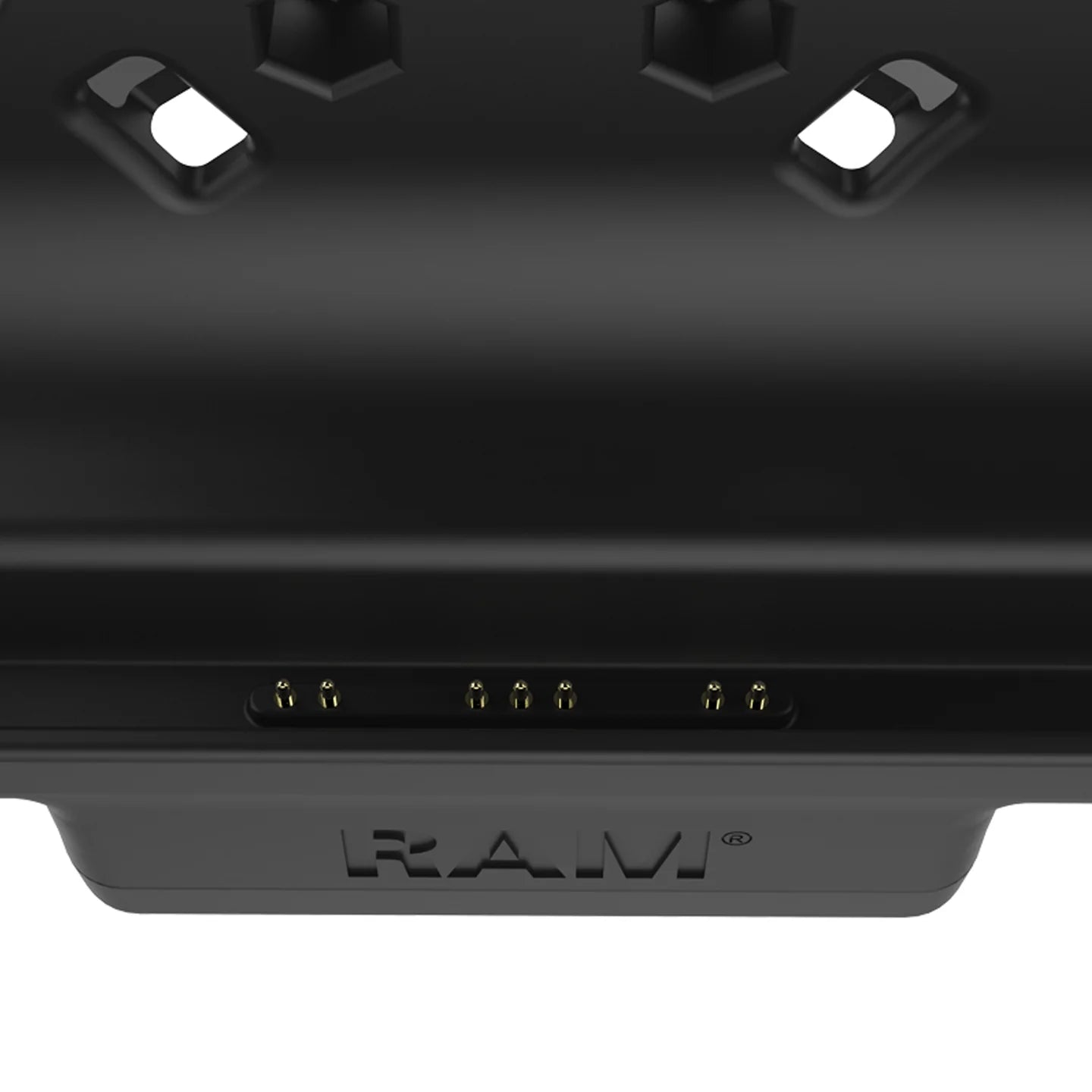

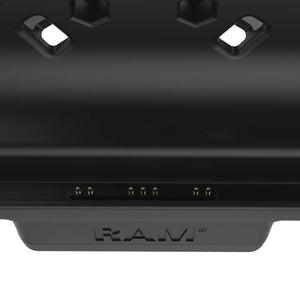

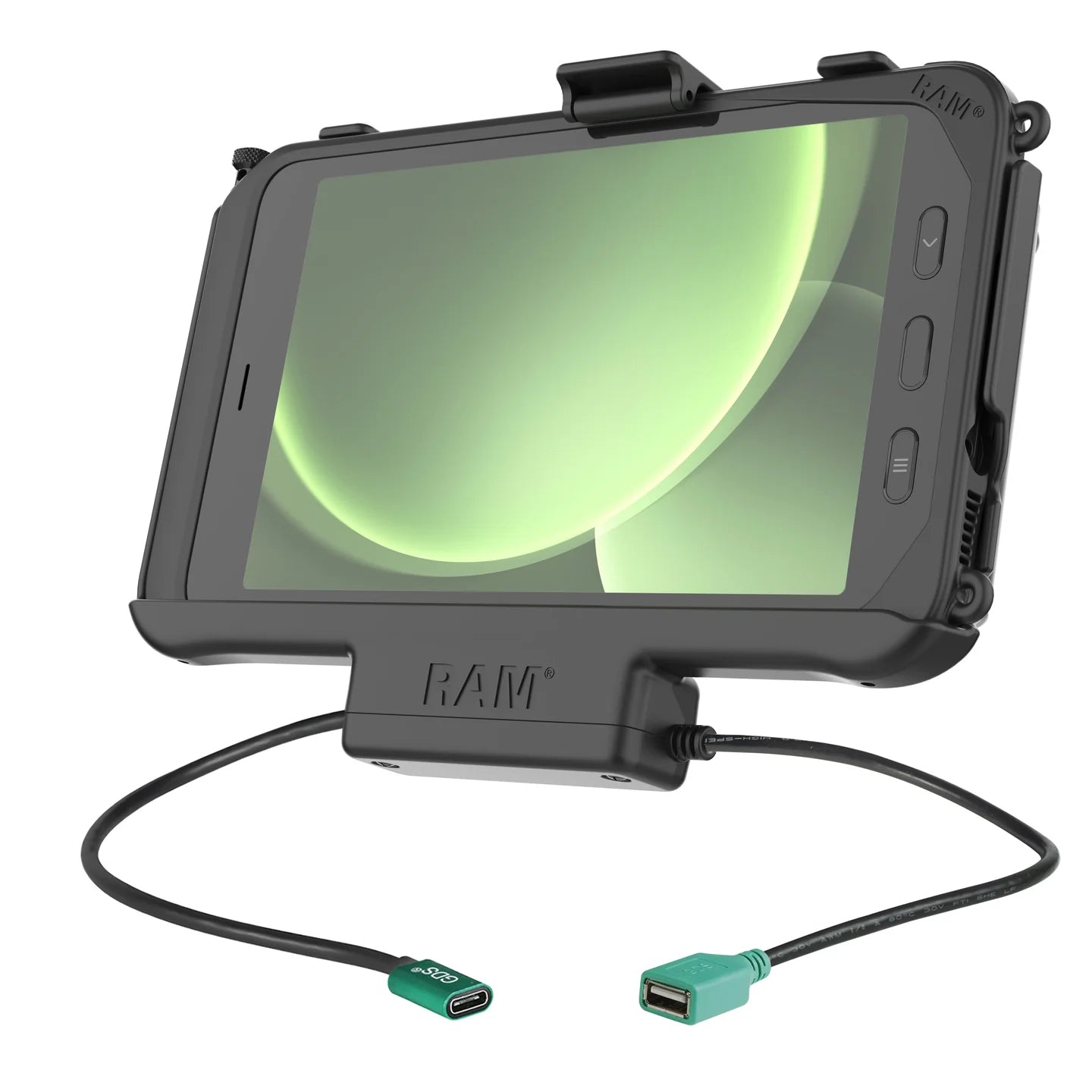

RAM RAM-HOL-SAM60CP-1A EZ-Roll'r form-fit powered dock for the Samsung Galaxy Tab Active3 and Tab Active2 provides charging and connects one additional USB peripheral through an integrated pogo pin connector

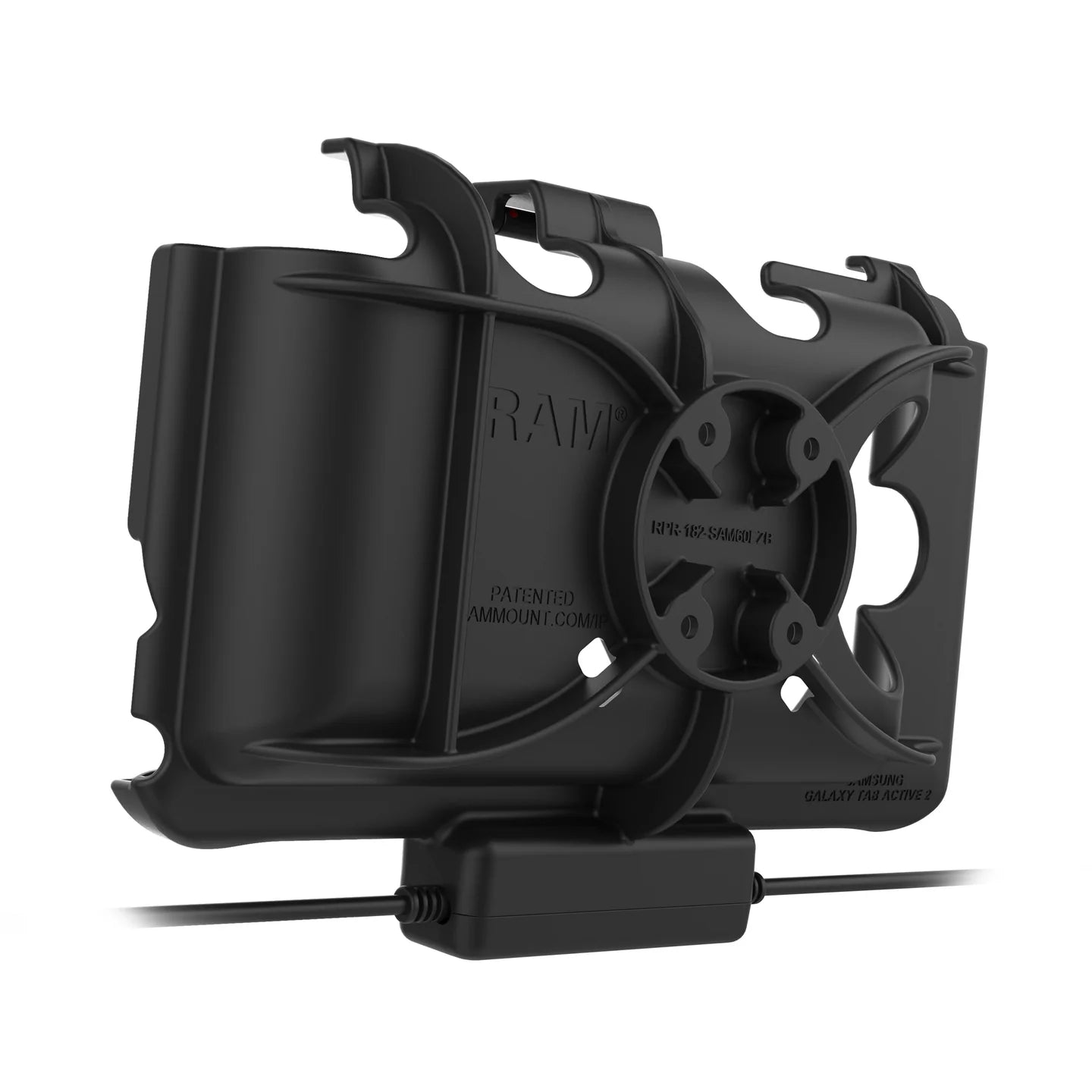

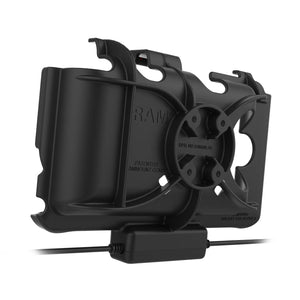

Compatible with the Samsung OEM skin as well as the RAM Skin; built-in cavity in the back allows for GDS Hand-Stand compatibility
Access to speakers, mics, headphone jack, and NFC reader remain while device is docked; allows access to the GDS shoulder strap loops on RAM Skin
Backed by a 3-year warranty
OVERVIEW

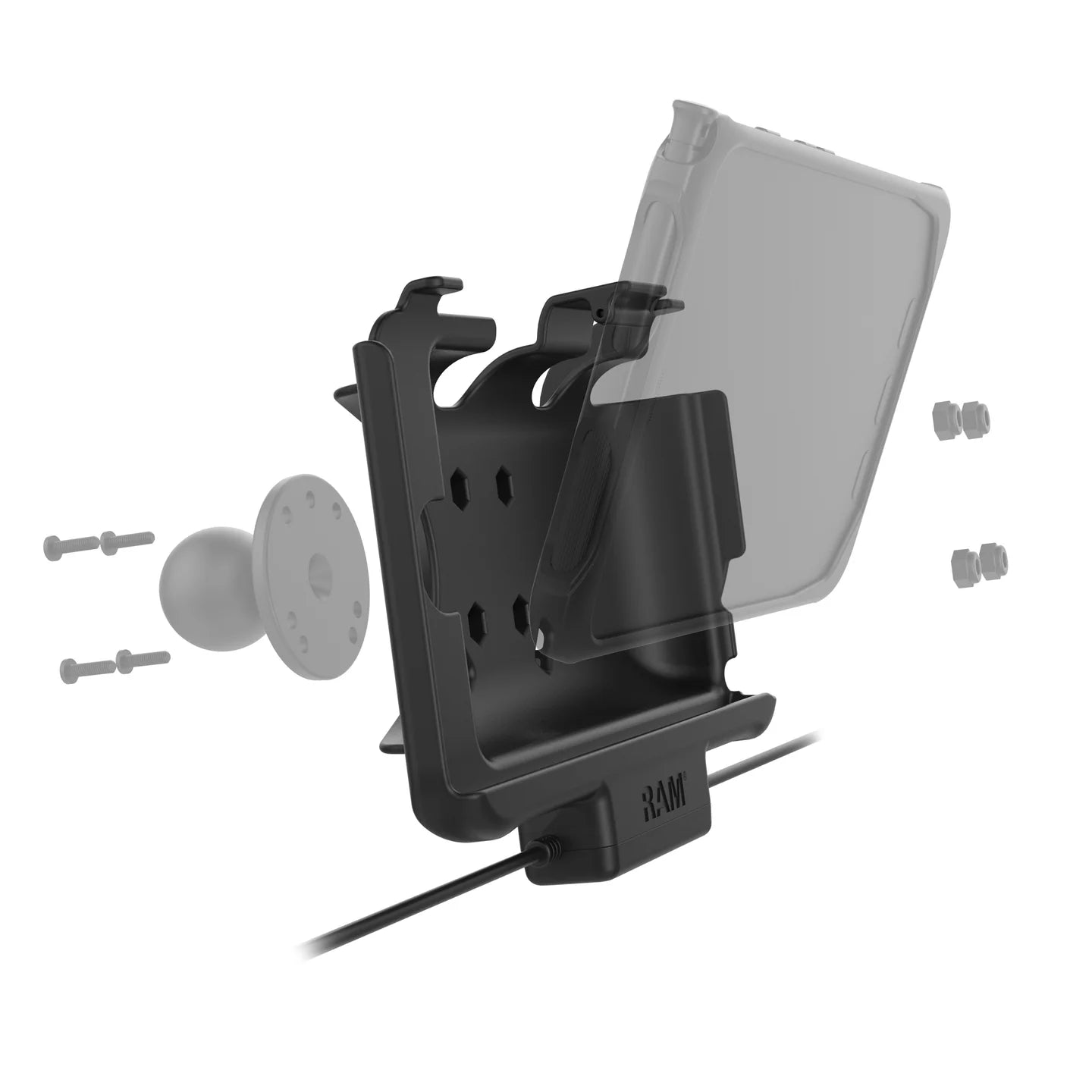

This RAM EZ-Roll’r power cradle for the Samsung Galaxy Tab Active5 and Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS pogo pins while taking advantage of this cradle's USB-A port to support an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS Hand-Stand attachment so you can easily take your Tab Active2 from your vehicle, to your person, to your desk with zero hassle.

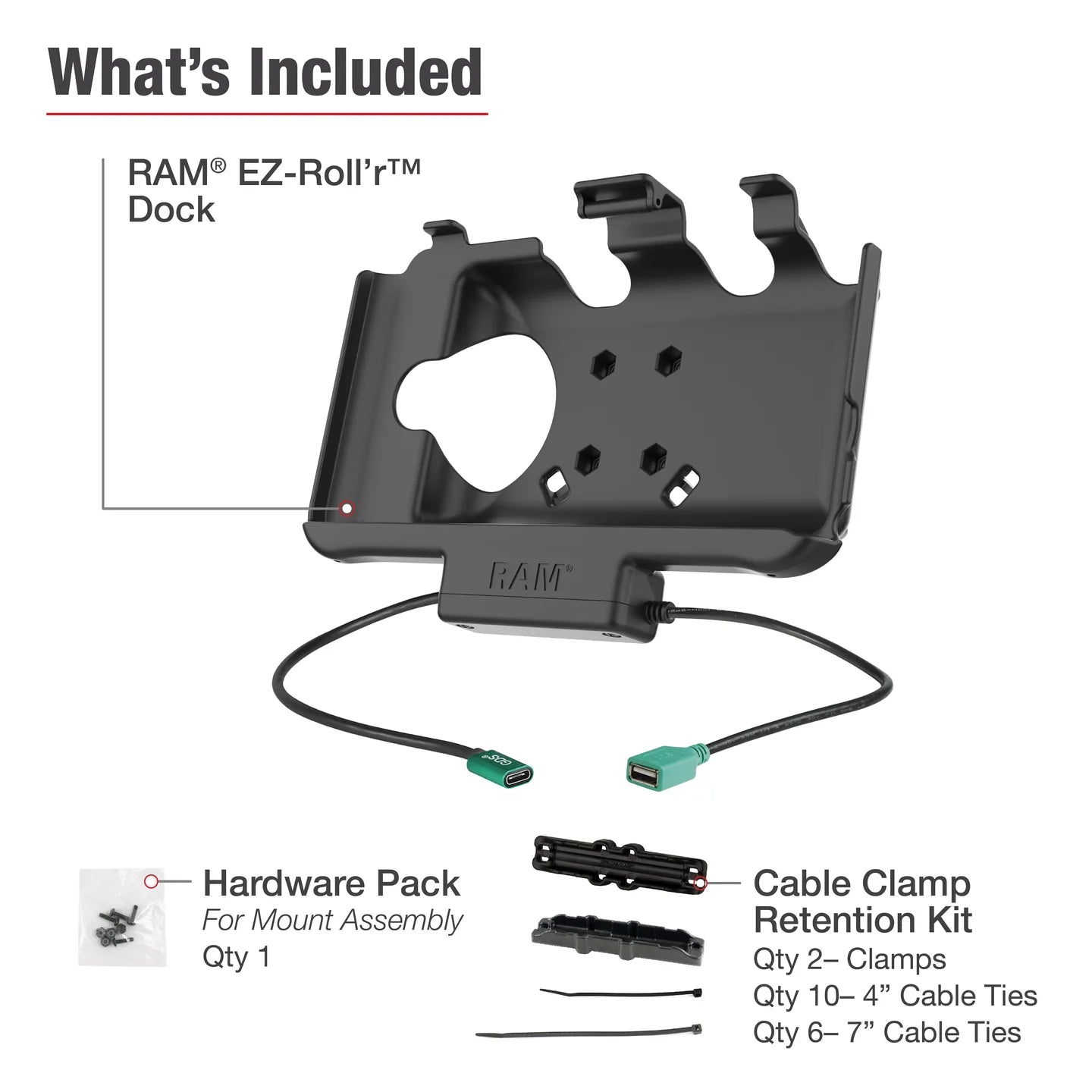

HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(10) Small Cable Ties
PRODUCT DIMENSIONS
Width: 9.24"
Height: 6.34"
Depth: 2.57"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
MATERIALS
High strength composite
INPUT VOLTAGE
5.3-5.4 VDC
INPUT CONNECTOR
USB Type C Female
OUTPUT CONNECTOR
USB 1.1 Type A
WARRANTY STATUS
3 year warranty
ADDITIONAL INFORMATION
This product will not support IntelliSkin.
Mount using a round ball base (RAM-202 recommended)
Device speakers and mics exposed
Device headphone jack exposed
NFC reader accessible while in dock
USB-C female pigtail for power
