RAM EZ-Roll'r Powered Holder for Samsung Tab Active3 and Tab Active2 with Charger (sku 57224)

RAM

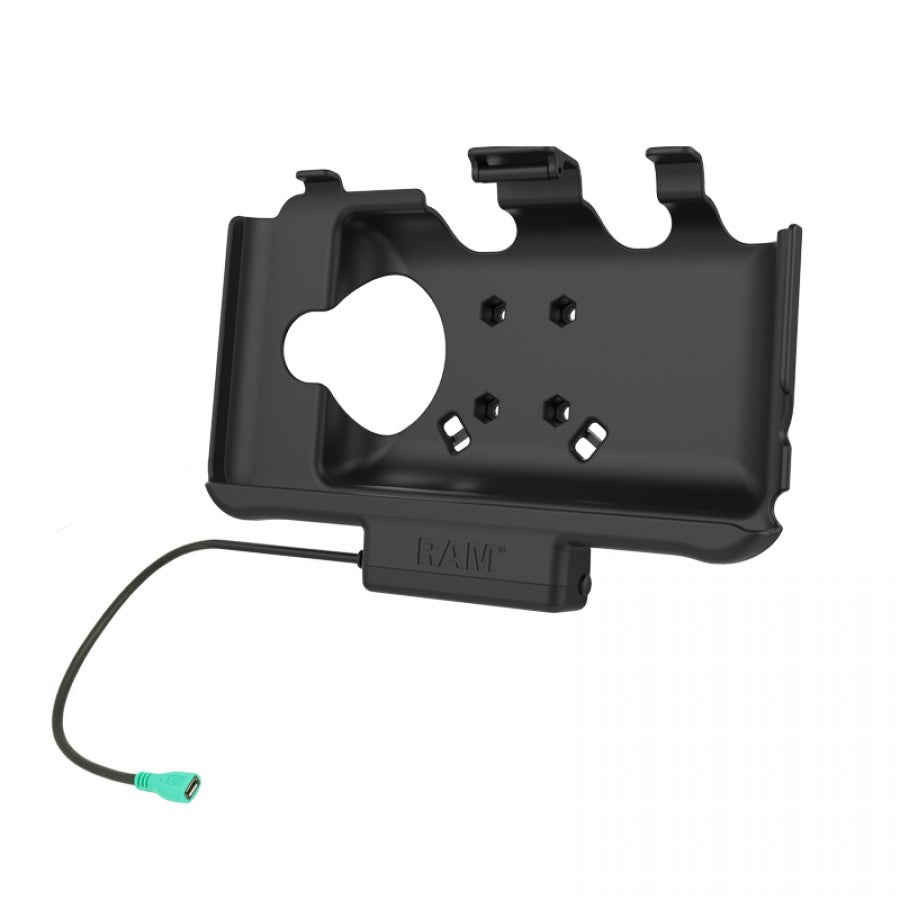

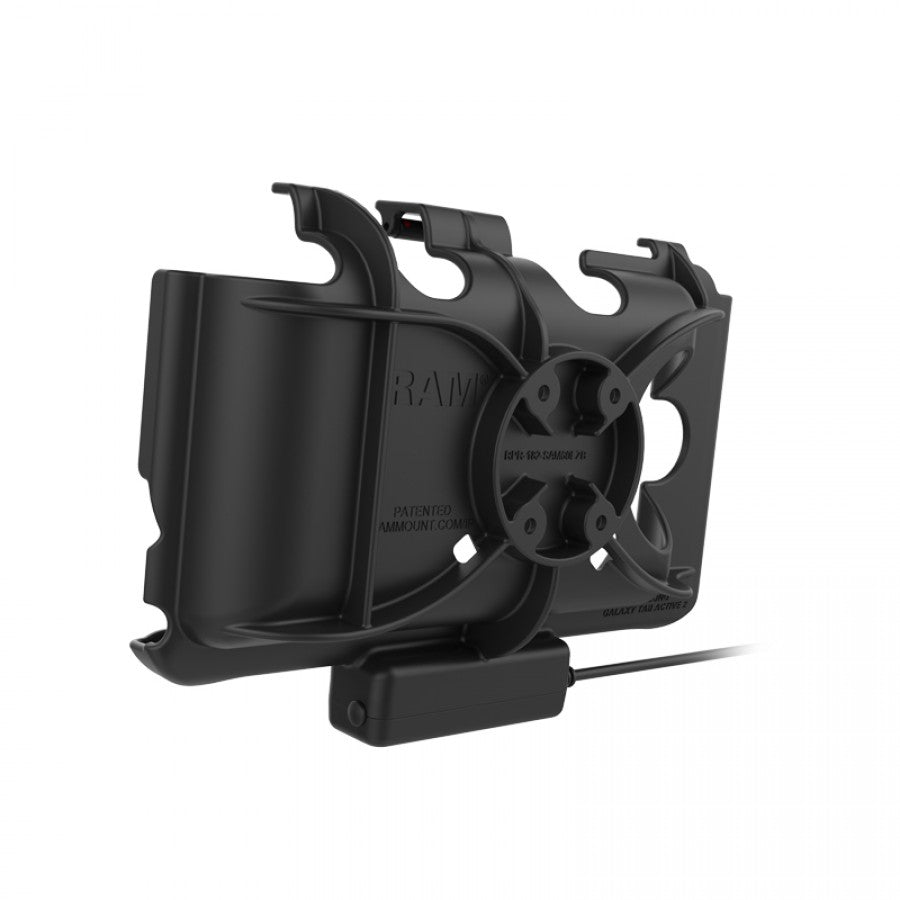

RAM-HOL-SAM60P-V7B1 EZ-Roll'r Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active3 and Tab Active2 through integrated pogo pin connector and mUSB cable

Compatible with the Samsung OEM skin as well as the RAM Skin; built-in cavity in the back allows for GDS Hand-Stand compatibility

Access to speakers, mics, headphone jack, and NFC reader remain while device is docked; allows access to the GDS shoulder strap loops on RAM Skin

Vehicle hardwire charger included

Backed by a 3-year warranty

OVERVIEW

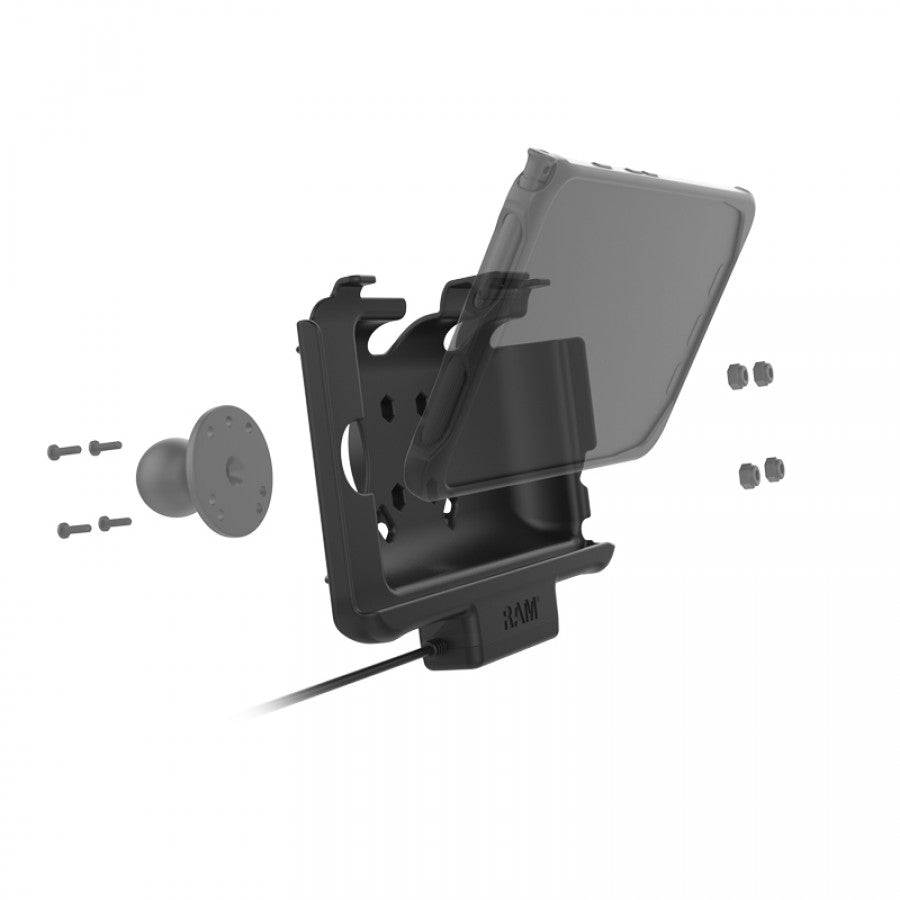

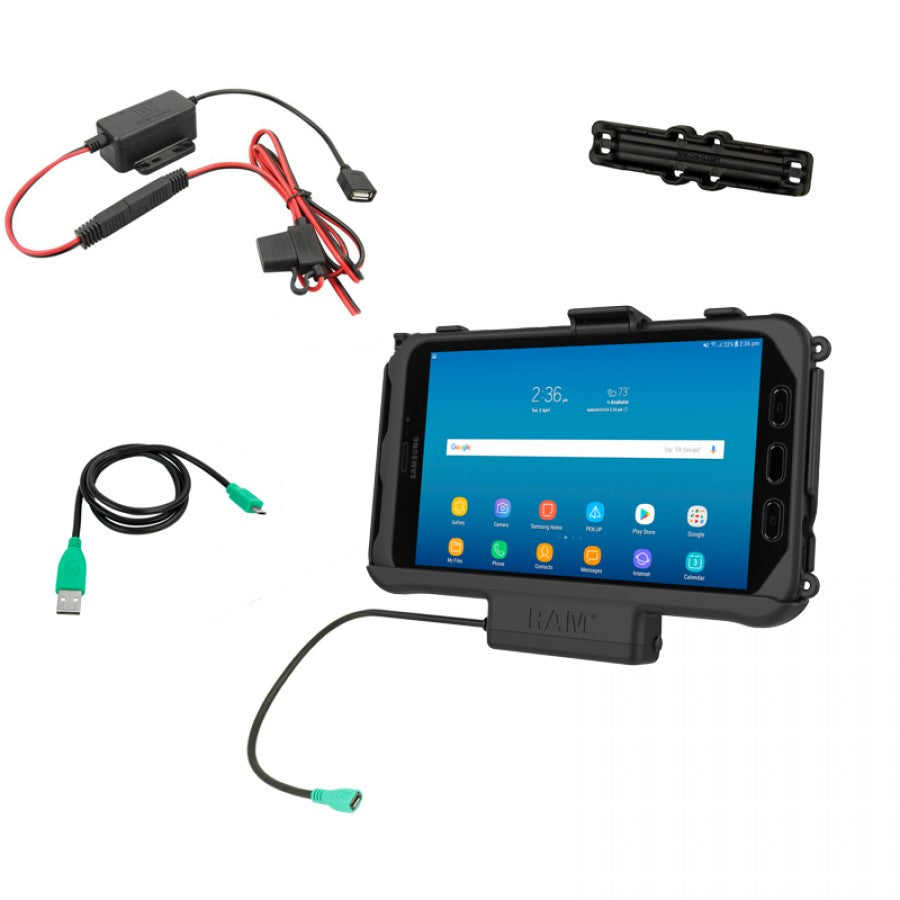

This powered cradle for the Samsung Galaxy Tab Active3 and Tab Active2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. This cradle is also ompatible with the RAM Skin or factory device skin, as well as GDS Hand-Stand and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp with zip ties, and a vehicle hardwire charger.

HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(5) Small Cable Ties
(1) Hardwire Charger

PRODUCT DIMENSIONS
Width: 9.25"
Height: 6.375"
Depth: 2"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

HARDWIRE CHARGER SPECS
INPUT RANGE
8V - 40V DC
OUTPUT VOLTAGE
5VDC
OUTPUT CURRENT
2.5A max
CONNECTOR TYPE
Female USB Type A
INPUT CABLE LENGTH
1.2 Meters including 2 Pole Flat Marine Connector
OUTPUT CABLE LENGTH
.2 Meters
OPERATING TEMPERATURE
-10°C to +70°C
STORAGE TEMPERATURE
-40°C to +70°C
COMPLIANCE
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
CERTIFICATIONS
CE Certification
e-Mark Certification
RCM Certification
FCC Certification

WARRANTY STATUS
3 year warranty

ADDITIONAL INFORMATION
This product will not support IntelliSkin.
Mount using a round ball base (RAM-202 recommended)
Device speakers and mics exposed
Device headphone jack exposed
NFC reader accessible while in dock
mUSB female pigtail for power
