SKU: 57225

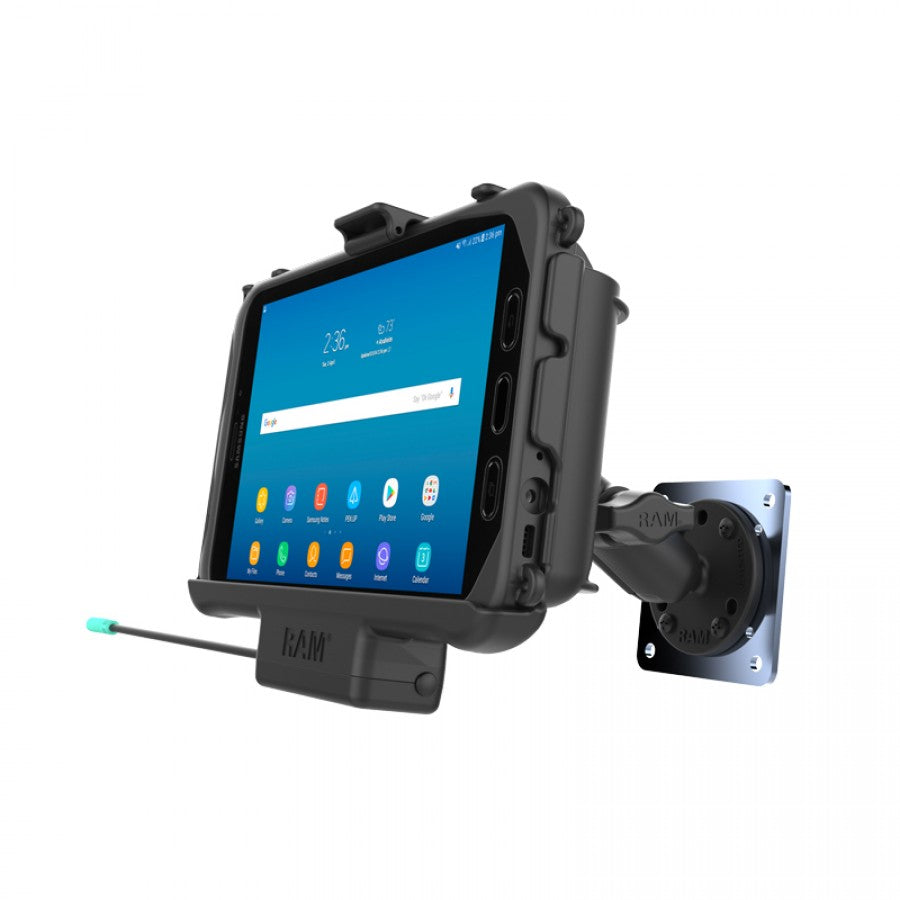

RAM RAM-B-101-225B2-SAM60CP-V7B1 EZ-Roll'r Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active2 & 3 & 5 through integrated pogo pin connector and USB-C cable
Compatible with the Samsung OEM skin as well as the RAM Skin; built-in cavity in the back allows for GDS Hand-Stand compatibility
Access to speakers, mics, headphone jack, and NFC reader remain while device is docked; allows access to the GDS shoulder strap loops on RAM Skin
Vehicle hardwire charger included
Backed by a 3-year warranty
OVERVIEW

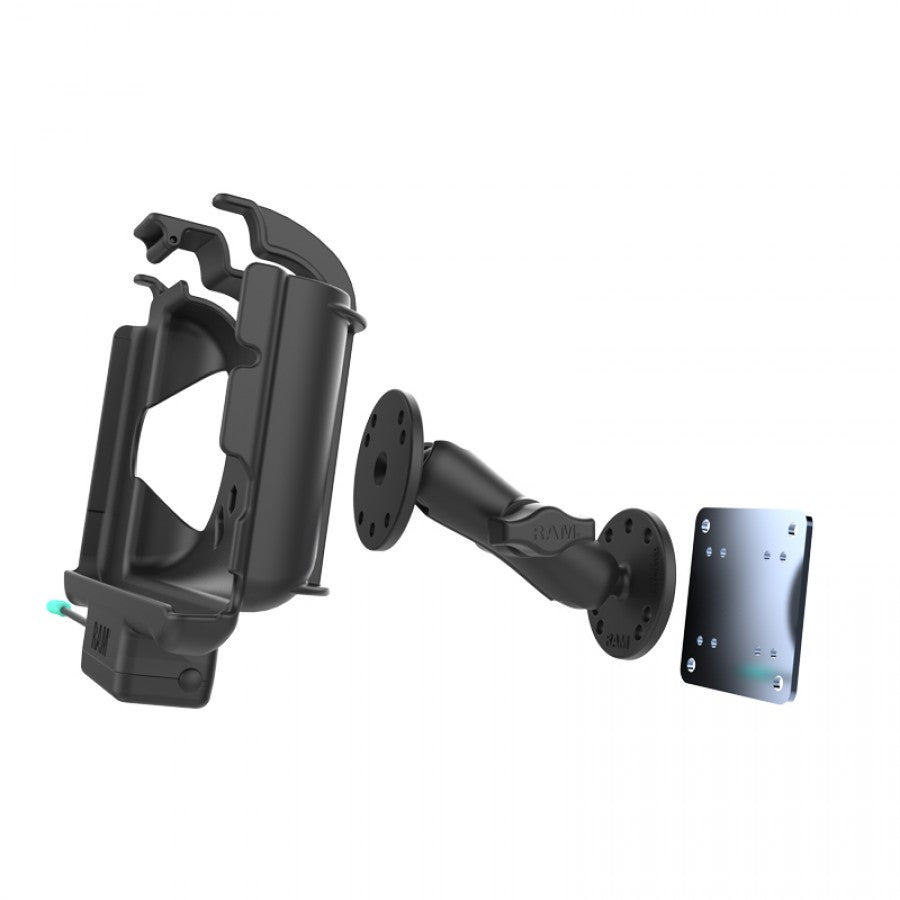

RAM Mounts has partnered with Samsung to develop a powered cradle for the Samsung Galaxy Tab Active series. Compatible with the Samsung OEM case as well as the RAM Skin, this cradle has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. This ultra-low cost cradle provides power to the device through the pogo pin interface on the tablet and can be easily rotated for both portrait and landscape operation of the device. Unique features include access to the NFC reader while in the cradle for scanning NFC tags as well as the stylus. This complete mounting kit includes a 3” x 3” steel backing plate with #10-24 threaded holes, two 2.5” round ball plates, medium length double socket arm, and a GDS® modular hardwire charger – an ideal solution for providing power to the Galaxy Tab Active.

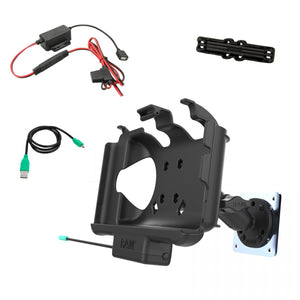

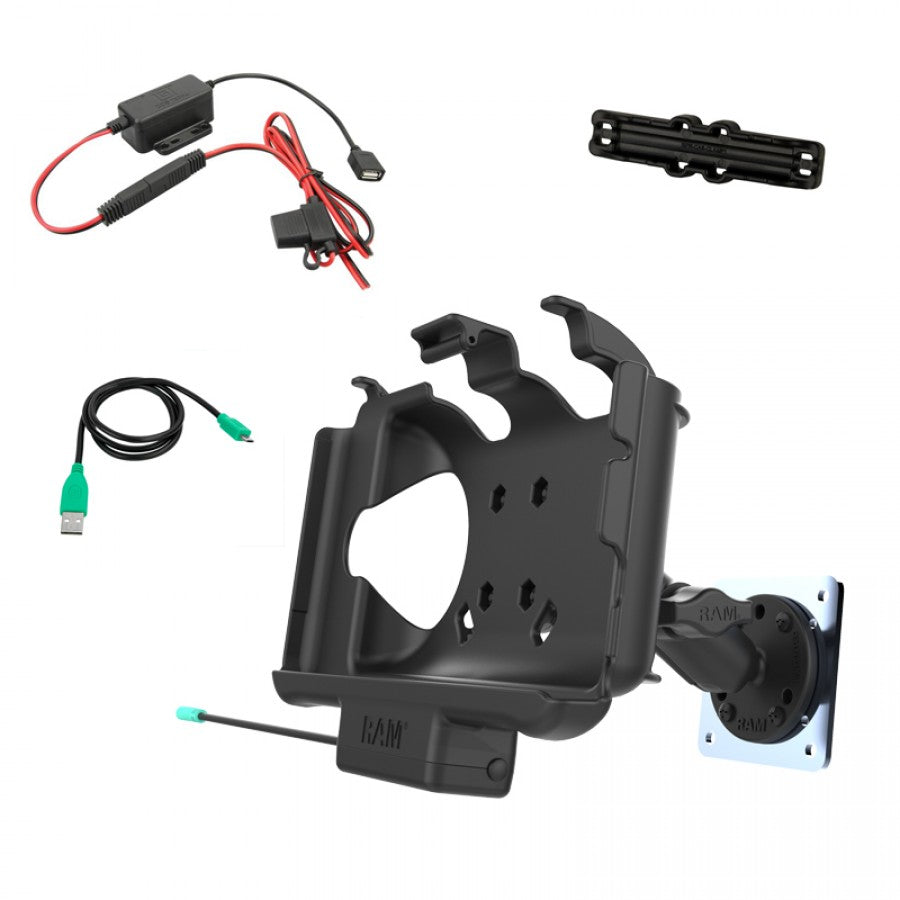

HARDWARE INCLUDED
Assembly Hardware
(1) 3" x 3" Steel Backing Plate
(4) #10-24 x 1" Thread Locking Screws
(4) #10-24 Nylock Nuts
(1) Cable Clamp
(1) mUSB Cable
(1) Hardwire Charger
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
1kg
MATERIALS
Steel
Marine-grade alluminum
High strength composite
HARDWIRE CHARGER SPECS
INPUT RANGE
8V - 40V DC
OUTPUT VOLTAGE
5VDC
OUTPUT CURRENT
500 mA
CONNECTOR TYPE
USB C
INPUT CABLE LENGTH
1.2 Meters including 2 pole flat marine connector
OPERATING TEMPERATURE
-10°C to +70°C
STORAGE TEMPERATURE
-40°C to +70°C
COMPLIANCE
Overvoltage/Load Dump Compliance: Meets SAE J-1113
CERTIFICATIONS
Integrated Short Circuit Protection
FCC, Industry Canada, CE, WEEE, e-Mark and RoHS Compliant USB 2.0 BC 1.2 DCP Support
WARRANTY STATUS
3 year warranty
ADDITIONAL INFORMATION
This product will not support IntelliSkin.
Mount using a round ball base (RAM-202 recommended)
Device speakers and mics exposed
Device headphone jack exposed
NFC reader accessible while in dock
USB-C female pigtail for power
