RAM Handlebar U-Bolt Mount for Garmin Astro 320, GPSMAP 62 & 64 Series (RAM-B-149Z-GA41U) (sku 54108)

SKU: 54108

4 items left

Complete GPS mounting kit for handlebars includes zinc-coated U-bolt base that accommodates rails from .5" to 1.25" in diameter, medium length B size RAM® double socket arm, diamond base ball adapter, and form-fit GPS cradle

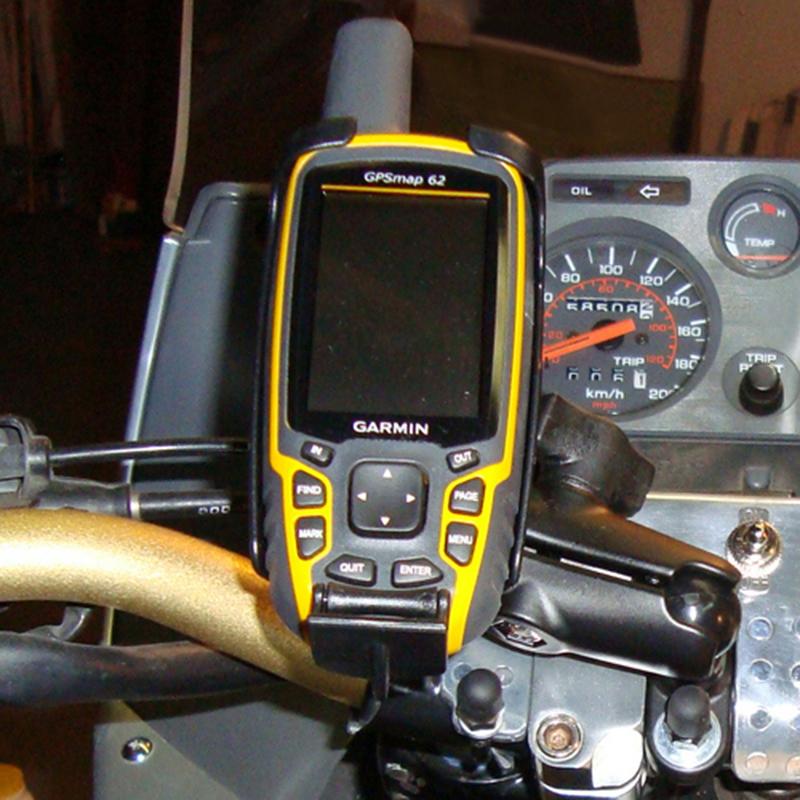

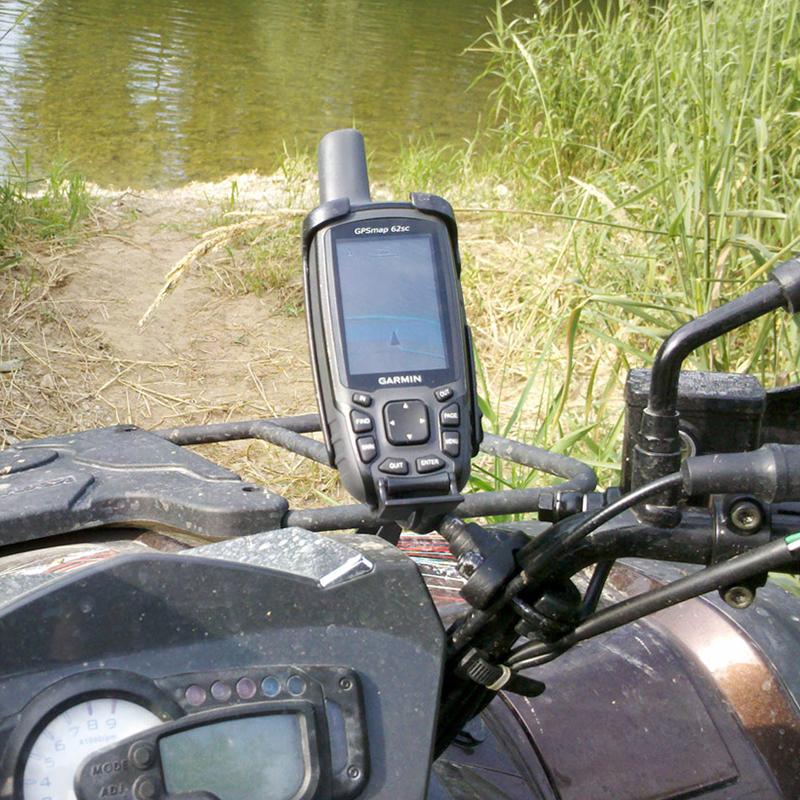

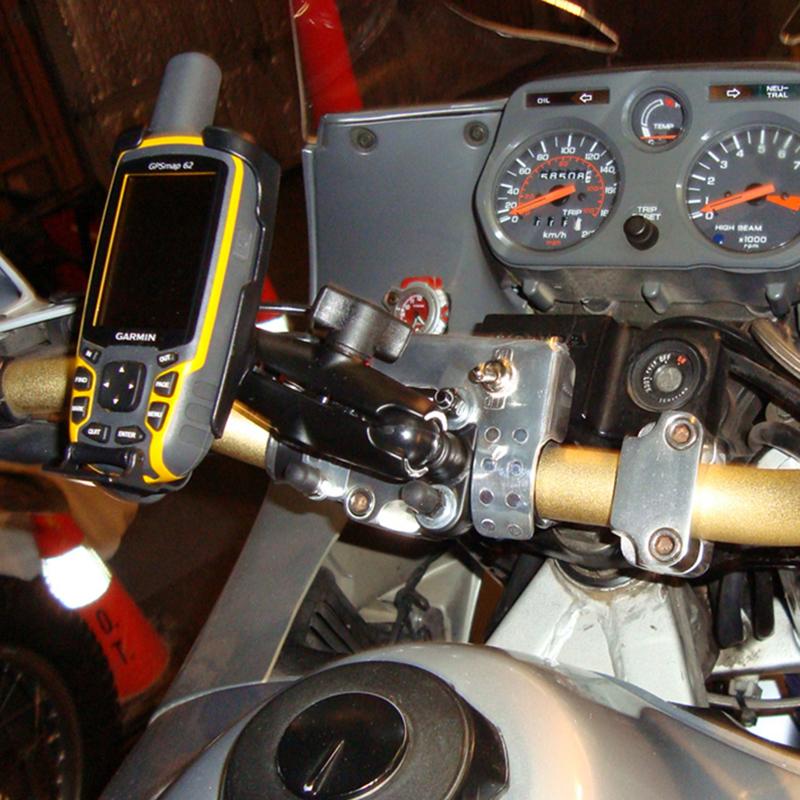

RAM® Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments

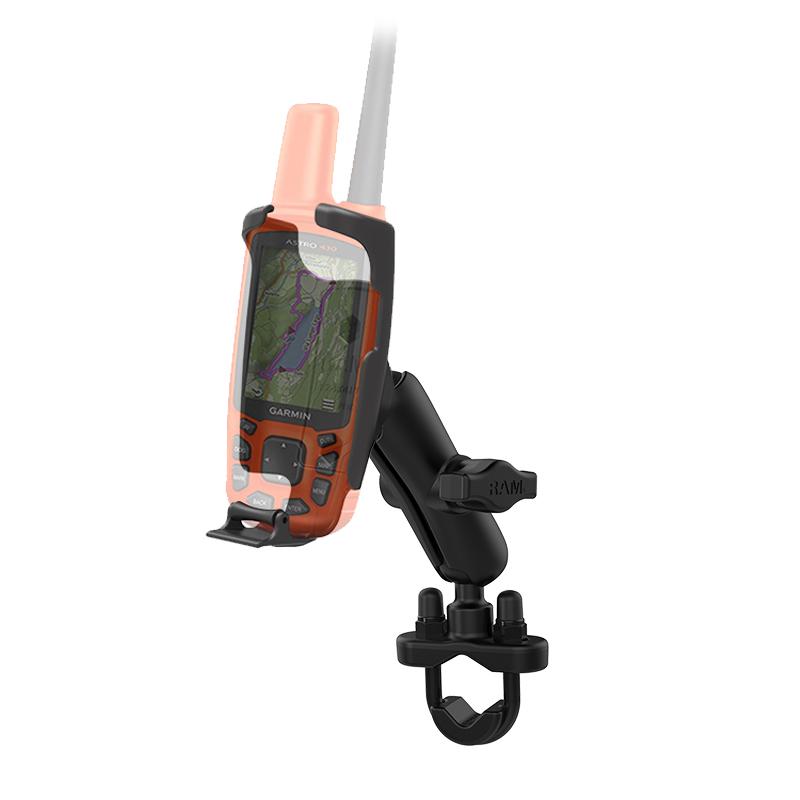

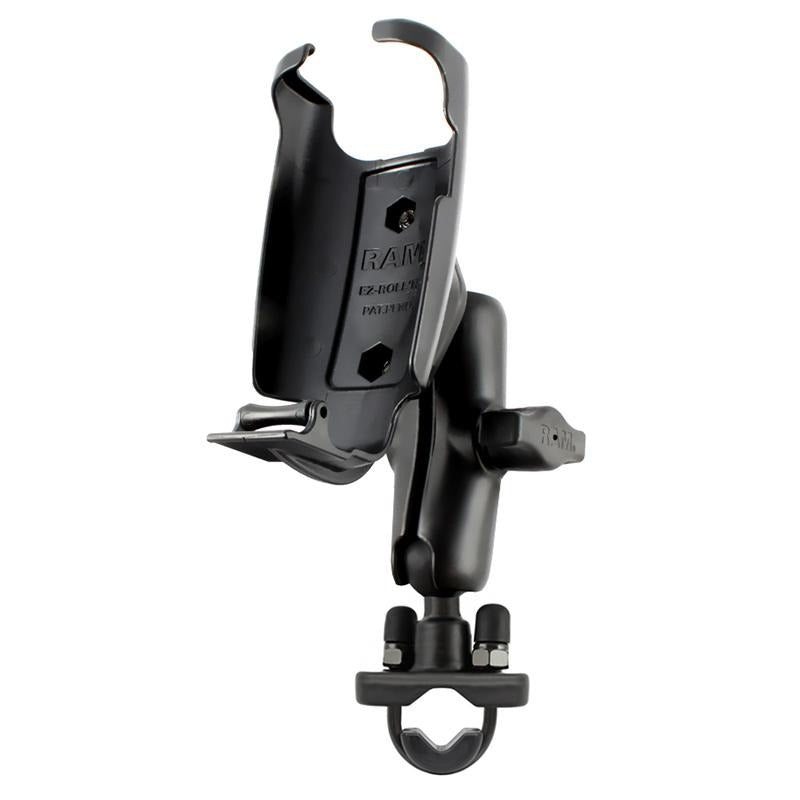

The RAM-B-149Z-GA41U consists of a zinc-coated U-bolt base, medium length double socket arm, and high-strength composite cradle with diamond ball base. Included in this kit is hardware that will accommodate rails from 0.5" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the U-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a B size 1" rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability and ideal viewing angles.
HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
