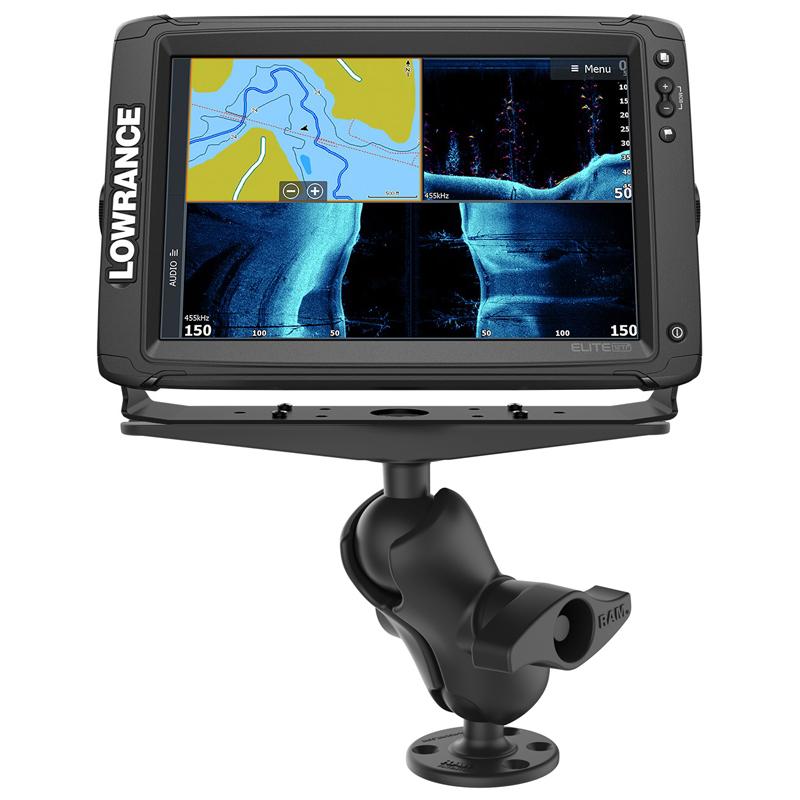

RAM Large Marine Electronics Mount (RAM-D-111U-C) (sku 54808)

SKU: 54808

3 items left

Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 8.125"
RAM® Mounts ball and socket technology allows for near-infinite adjustability
Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments

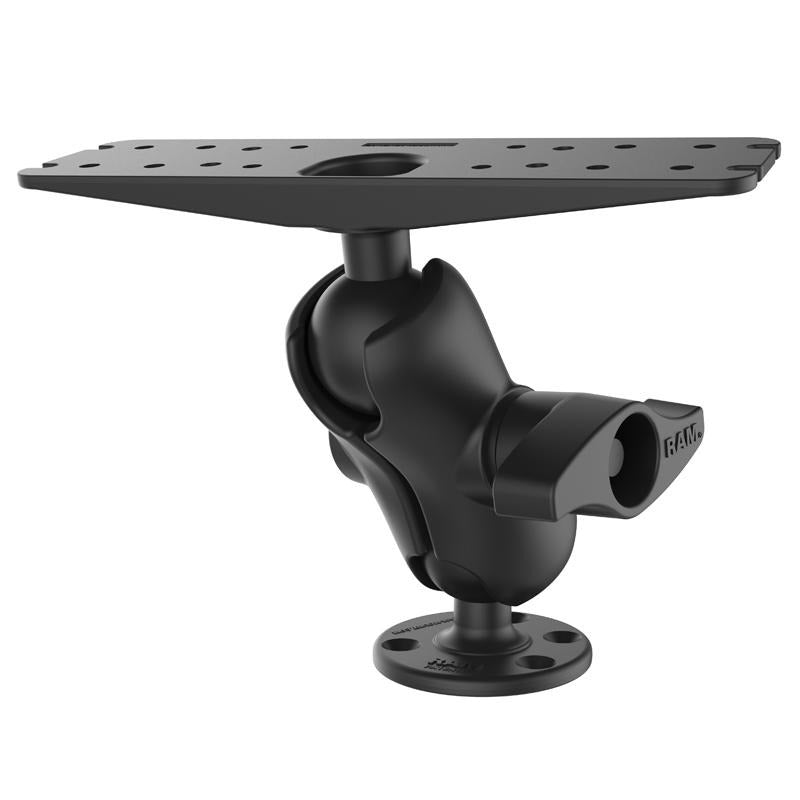

The RAM-D-111U-C consists of a short double socket arm, 3.68" diameter round base, and 11" x 3" rectangle base. The round base includes a 2.25" D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 2.25" D size rubber ball and contains a variety of pre-drilled holes that are compatible with several large marine electronic devices, including fishfinders and chartplotters.
HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers

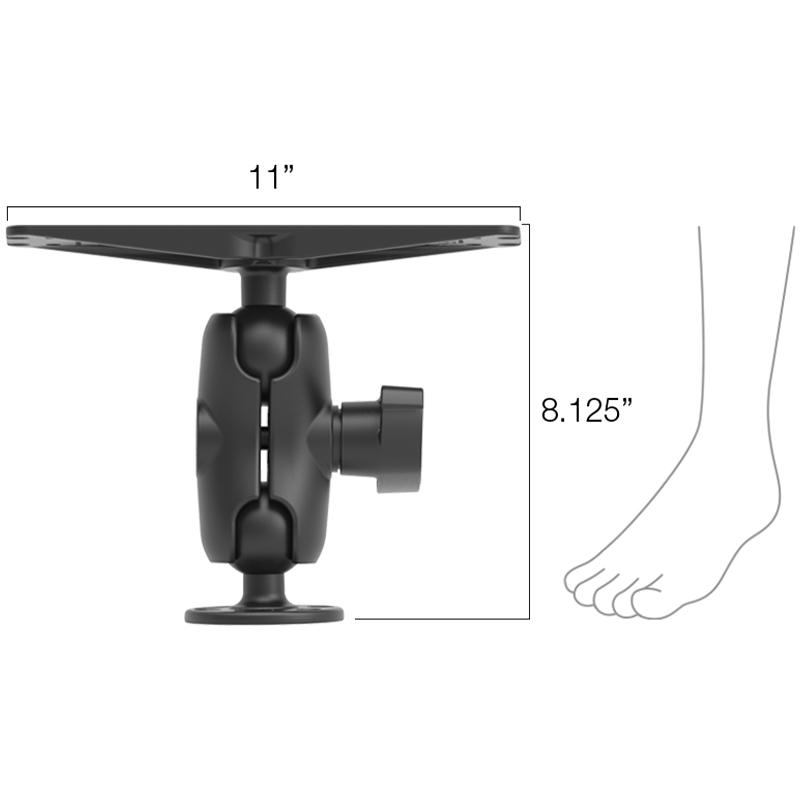

PRODUCT DIMENSIONS
Overall Length: 8.125"
SOCKET-TO-SOCKET LENGTH
3.6"
HOLE PATTERN
See Drawings
PLATE SIZE
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter
BALL/SOCKET SIZE
D Size (2.25")

Consists of - RAM-D-202U - RAM-D-201U-C - RAM-D-111BU
