RAM Pin-Lock Universal Marine Electronic Mount (RAM-S-B-111U) (sku 54655)

SKU: 54655

3 items left

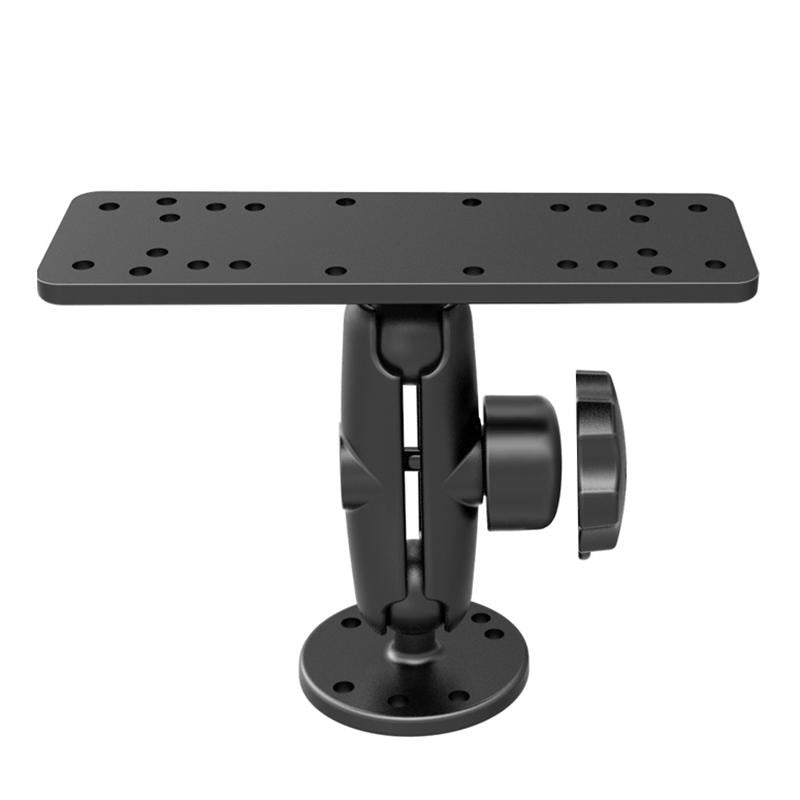

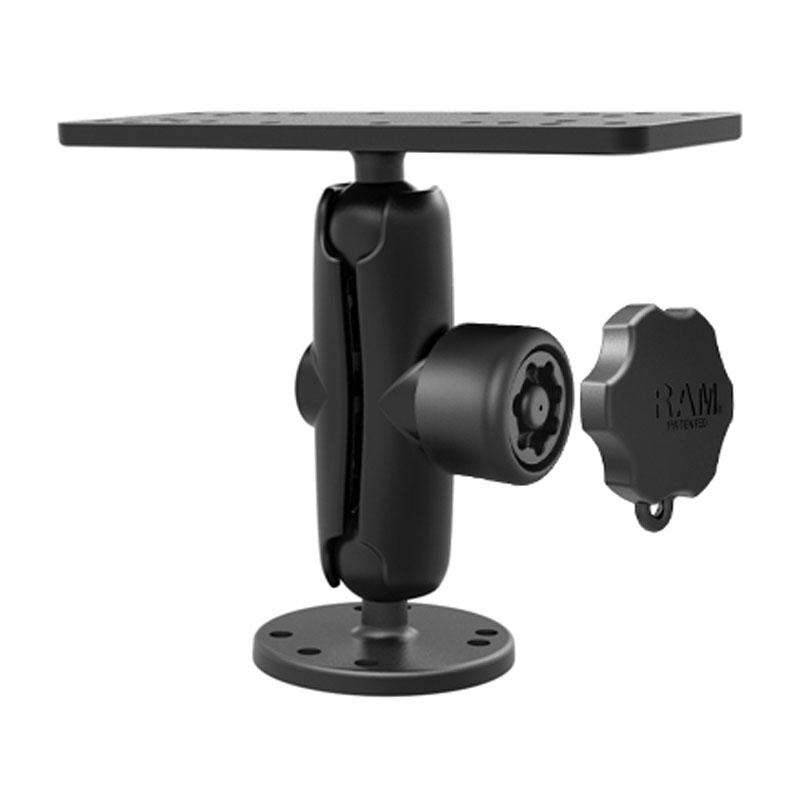

The RAM-S-B-111U consists of a 2.5" diameter round base, SHORT LENGTH double socket arm, 6.25" x 2" rectangle base, RAM mixed combination Pin-Lock™ security nut and key knob. The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
Overall Height:
5"Weight Capacity:
Up to 2 lbs.
HARDWARE INCLUDED
(1) RAM Pin-Lock Security Key
PRODUCT DIMENSIONS
Overall Height: 5"
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
PLATE SIZE
Top Plate: 6.25" x 2"
Bottom Plate: 2.5"
