RAM Universal Marine Electronic Mount (RAM-D-115-C) (sku 54807)

SKU: 54807

4 items left

Complete flat surface, drill-down mounting solution compatible with 9"-12" fishfinder gimbal brackets
RAM® Mounts ball and socket technology allows for near-infinite adjustability
Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments

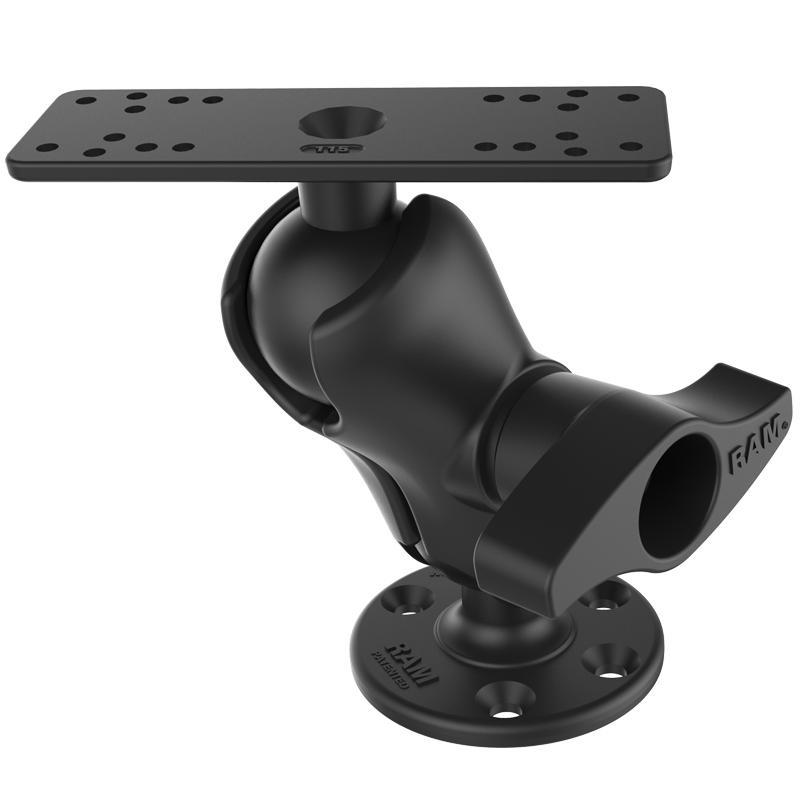

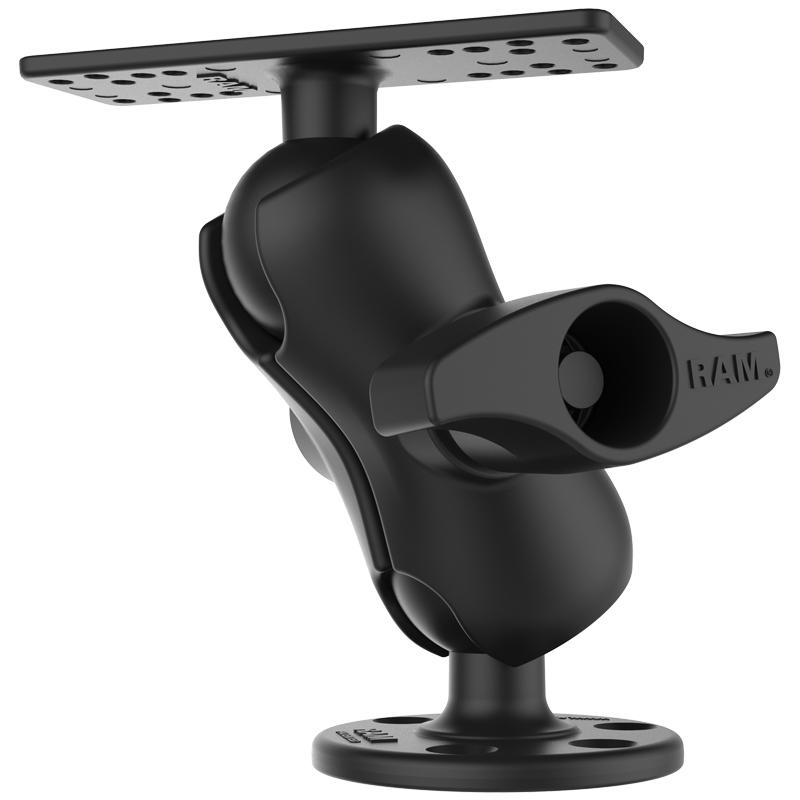

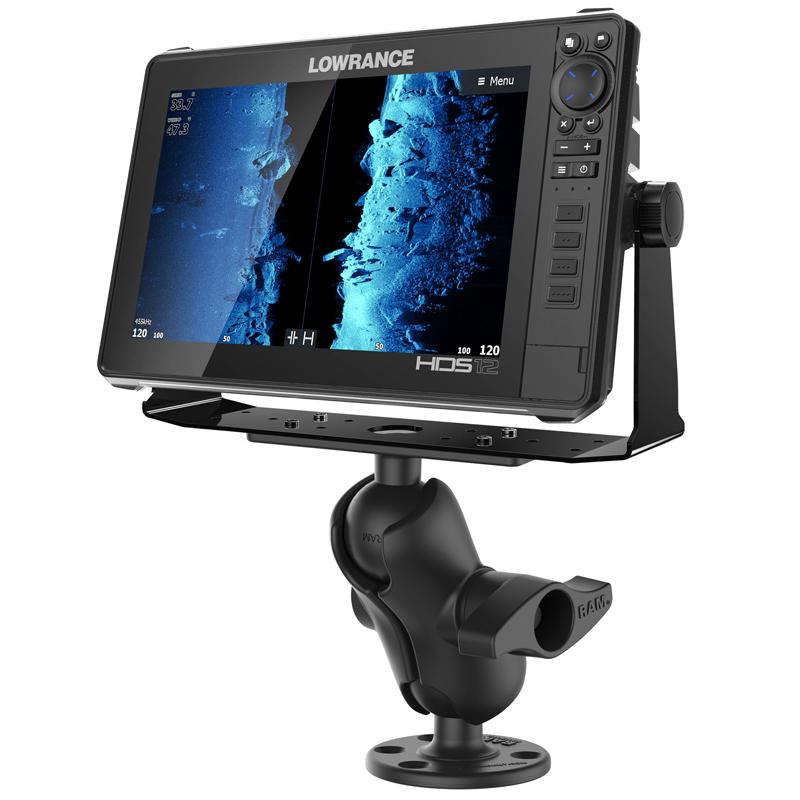

The RAM-D-115-C consists of a base with a 2.25” diameter D size ball, a short arm and a 6.25” x 2” marine electronic plate with a D size ball for supporting larger devices. This marine electronic plate contains different combinations of pre-drilled holes and is a direct fit for 9”-12” fishfinder gimbal brackets. Supports devices such as the Lowrance HDS-9 Gen2 Touch, Garmin GPSMAP 7407 and more.
PRODUCT DIMENSIONS
Overall Height: 7.325"
SOCKET-TO-SOCKET LENGTH
3.6"
HOLE PATTERN
See Drawings
PLATE SIZE
Top Plate: 6.25" x 2"
Bottom Plate: 3.68" Diameter
BALL/SOCKET SIZE
D Size (2.25")

Consists of - RAM-D-202U - RAM-D-201U-C - RAM-D-115BU
