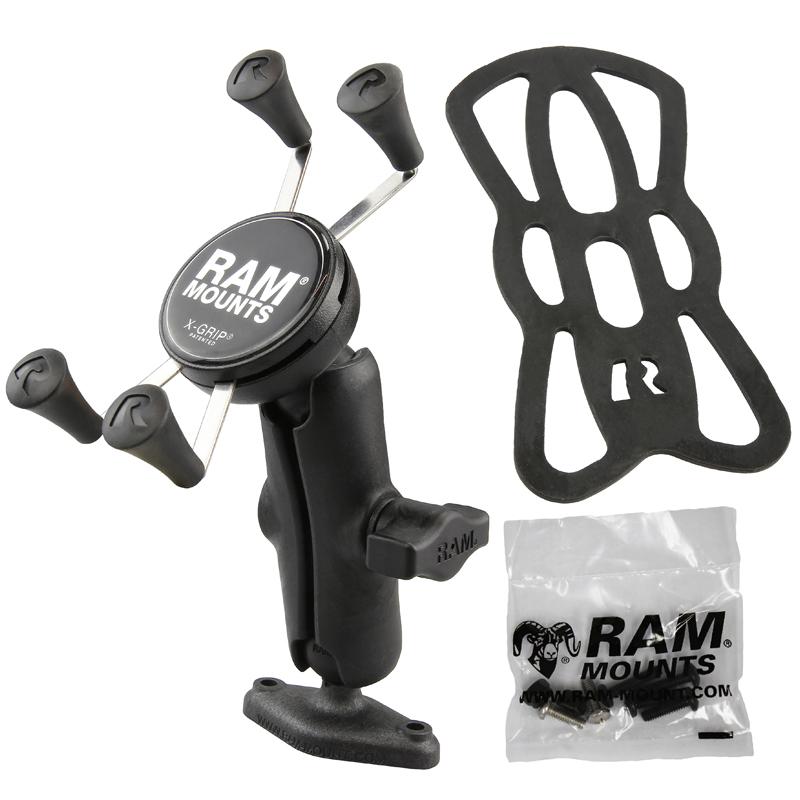

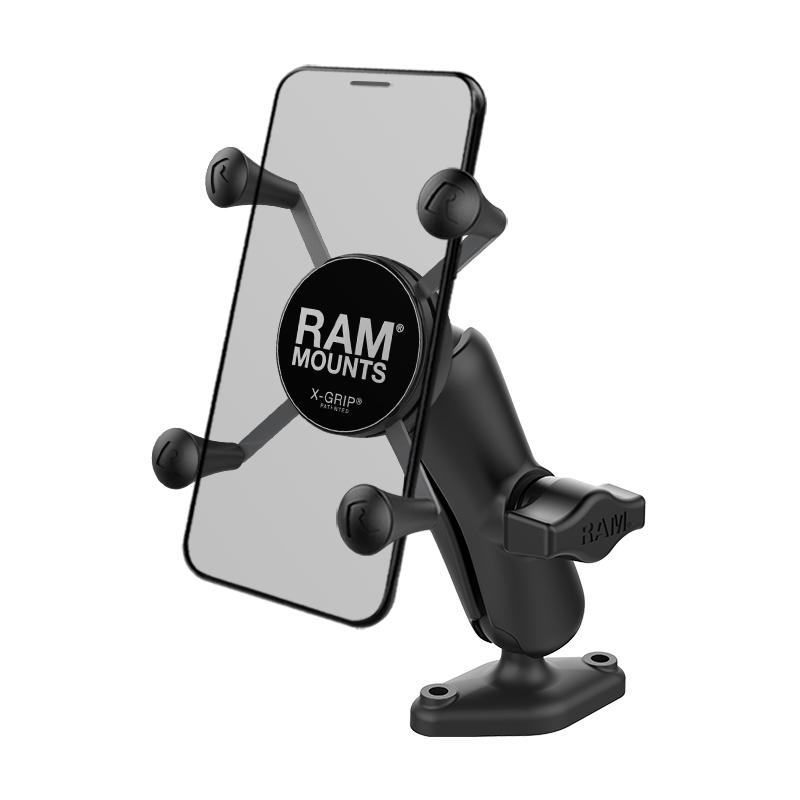

The RAP-B-102-UN7U consists of a composite diamond base, double socket arm and universal spring loaded X-Grip® cradle for cell phones. Designed into the mount is a 1" diameter unique rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you to move the X-Grip® mount to your optimum viewing position. The 2.43" x 1.31" diamond base has two holes 1.912" from center to center and matches the industry standard AMPS hole pattern. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone holder evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
Width Range: 1.875" - 3.25"
Depth Range: .875" max
Socket to socket length
2-Hole AMPS: 1.912"
