SKU: 12768

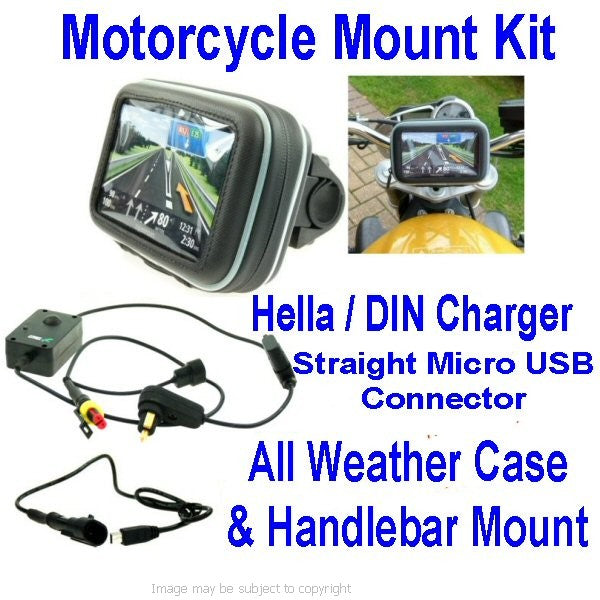

Waterproof Satnav bike mount for motorcycles with a Hella / DIN / BMW power socket in place.
Hold & charge GPS SatNav systems which use a MICRO USB connection directly from your bikes power socket.
Complete mount kit consists of:
1 x Arkon waterproof protective case for GPS Satellite Navigation devices
1 x Arkon high quality adjustable handlebar mount
1 x Ultimate Addons motorcycle Hella charging cable supplied with a straight ended MICRO USB charging connector.
Save money by using your 'CAR' SatNav system out on two wheels without worrying about the elements.

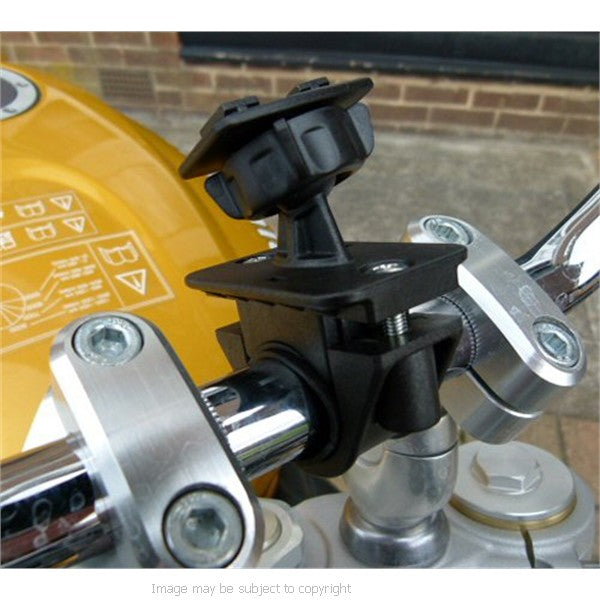

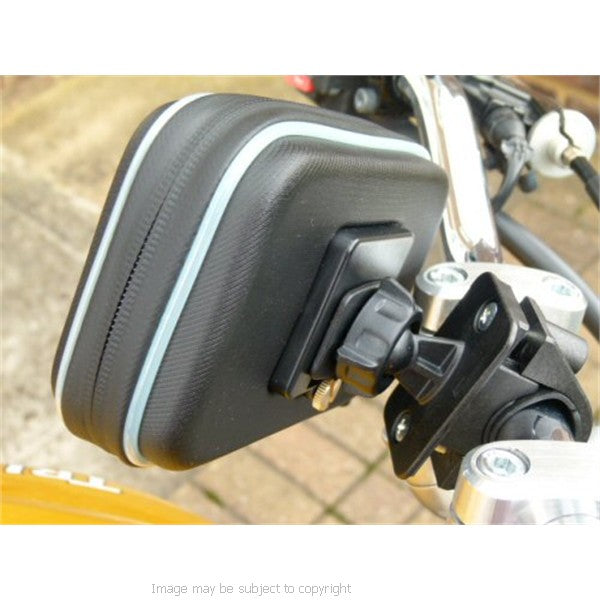

The Mount: The Arkon handlebar fixing will fit bars from 16mm up to 33mm. It's pedestal design uses a ball joint for full adjustment and tightening ring to hold the position securely.
Includes 2 x Bar inserts to cushion & protect handlebars.

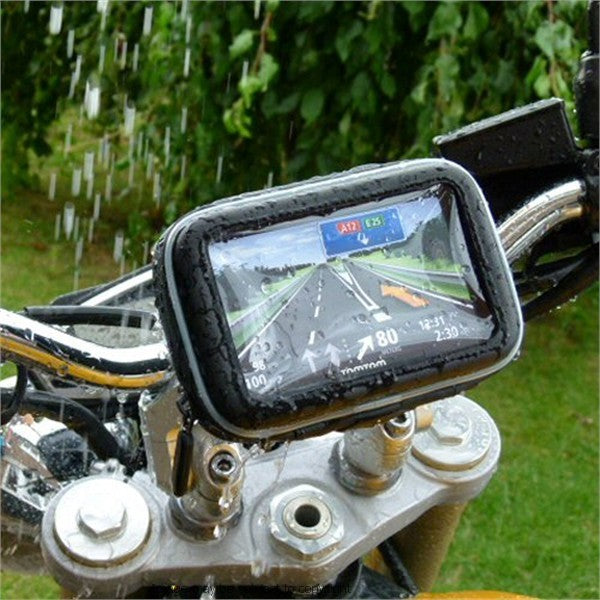

The universal case is waterproof and will protect from rain or damp weather.
Suitable for SatNav devices no larger than 13.2cm x 8cm x 3cm.
Just measure your device to see if it will fit.

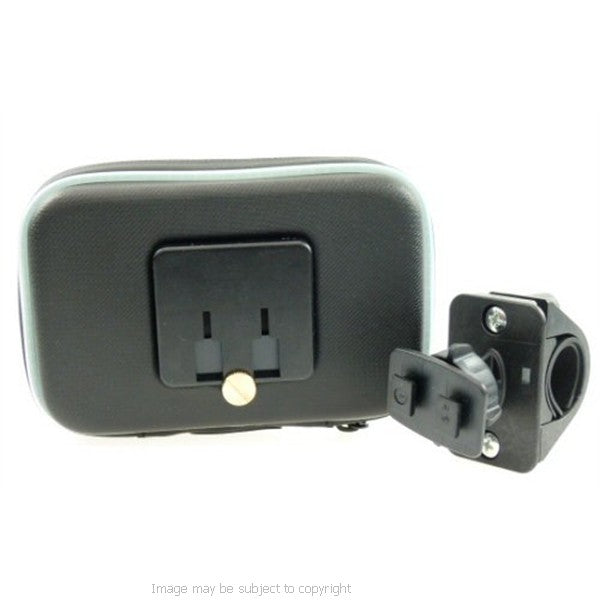

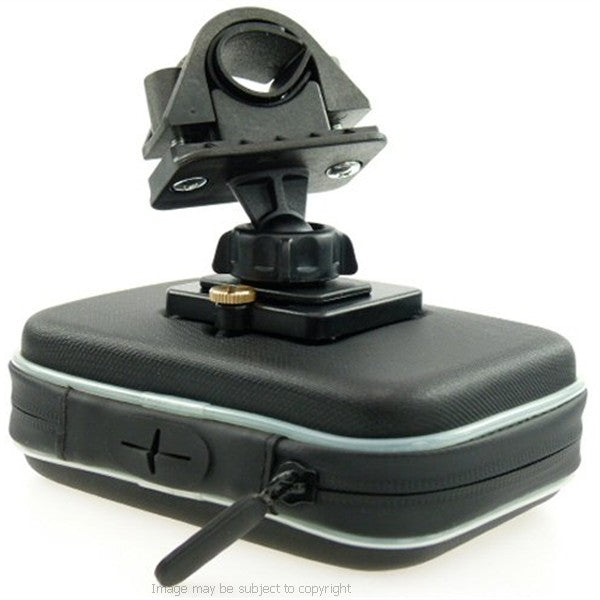

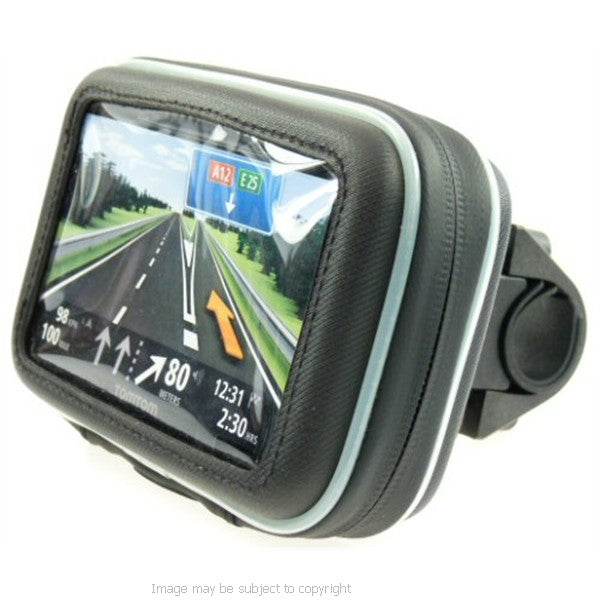

The Case: This universal case has a transparent touch sensitive lens which allows you to view and control your SatNav while it remains protected within the case.
The water resistant zip keeps moisture out.
Charging cable access.
The case comes with ONE support pad to enable devices of varying sizes to be inserted as standard.
Case un-clips easily for security or storage.
Incorporates a brass security thumb screw to ensure the case does not detach from the mount during extreme off road pursuits.
Bonus:Spare Brass Thumb Screw Included.

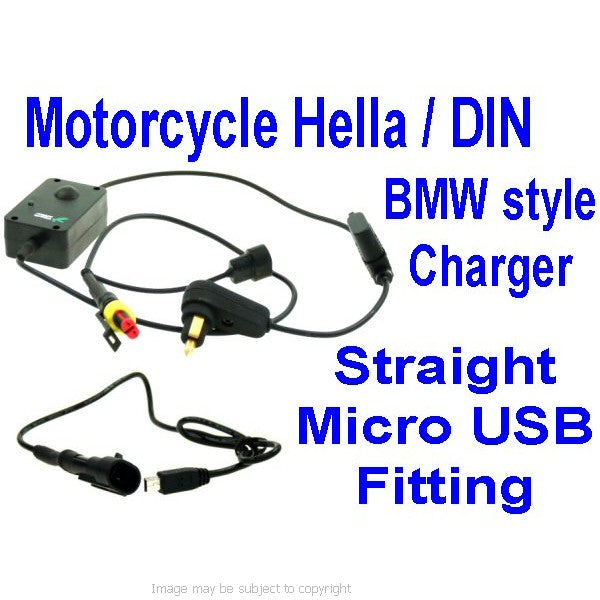

The Ultimate Addons Hella / DIN Charging Cable:
Straight Micro USB charging connector.
High quality cable
Waterproof - designed for motorcycles.
Hella / DIN / BMW Style plug
On/Off switch
Fused (2 amp)
Weather cap on power cable
Weather cap on the charging connector
Input Voltage: DC 6-24V / Maximum: 16A
Output Voltage: DC 5V
Reverse Voltage Protection
Short-Circuit Protection
Overload Protection
Overall length approx 0.9m
Connector to Switch Box = approx 0.35m
Switch Box to Battery Connectors = approx 0.45m
Power connector cable = approx 0.5m
Will this kit fit my Satnav?
For the case - Just measure your satnav we have included the maximum internal measurements in the write up.
For the power connector - this kit contains a MICRO USB connector which is used on the TomTom Via 120 / 125 & START 20/25. Check your devices manual if in doubt.
The motorcycle power connector fits Hella / DIN & BMW style sockets.
